STRAPPING EQUIPMENT FOR WIRE COILS AND ROLLED PRODUCTS

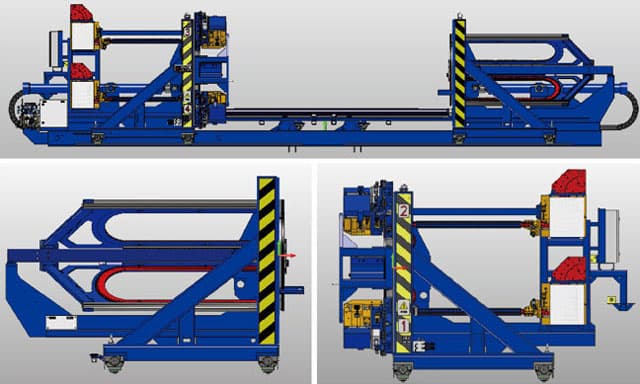

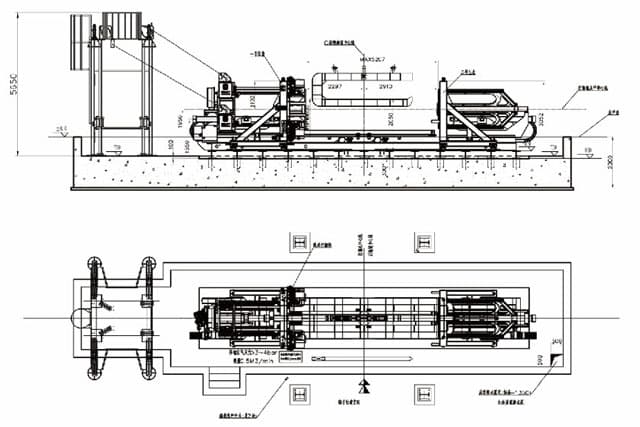

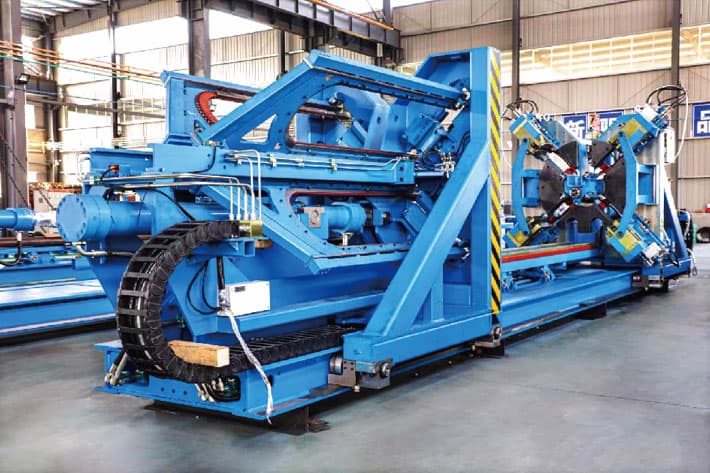

Automatic steel wire coil compacting and strapping equipment, horizontal type TG-230-4W
Technical specification of the wire coil strapping equipment
| Parameter | Unit | Value |
|---|---|---|
| Overall dimensions (L × W × H) | mm | 14000 × 2560 × 3400 |
| Coil dimensions | mm | Max. outer diameter: 1400 Inner diameter: 850 (±100) |
| Number of strappings | pcs. | 4 |
| Compressed air supply | MPa | 0.4 ~ 0.6 |
| Strapping position | — | Equally spaced along the circumference |
| Coil length after compacting | mm | 625 ~ 2400 |
| Strapping cycle time | s | ≤ 32 |
| Maximum power consumption | kW | 100 ~ 150 |
| Tie wire diameter | mm | Ø 6.3 ~ 8.0 |
| Tie wire material | — | Q195–Q235 steel |
| Twist type | — | Twist knot |
| Compacting force | t | 10 ~ 50 |

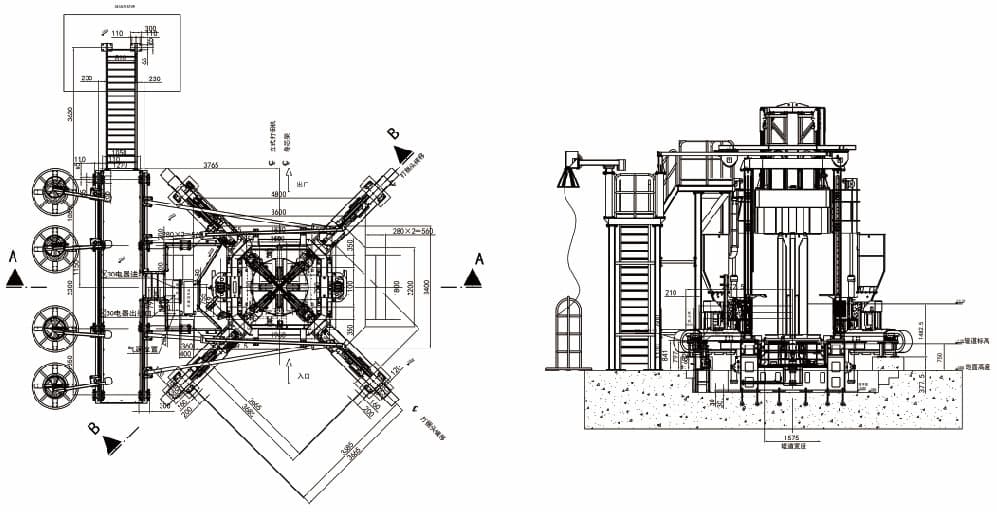

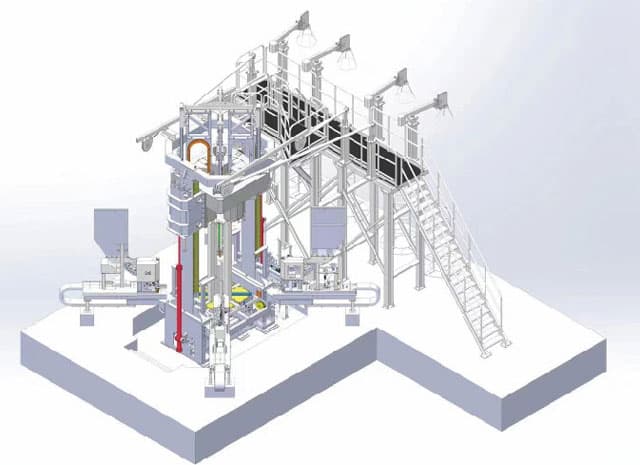

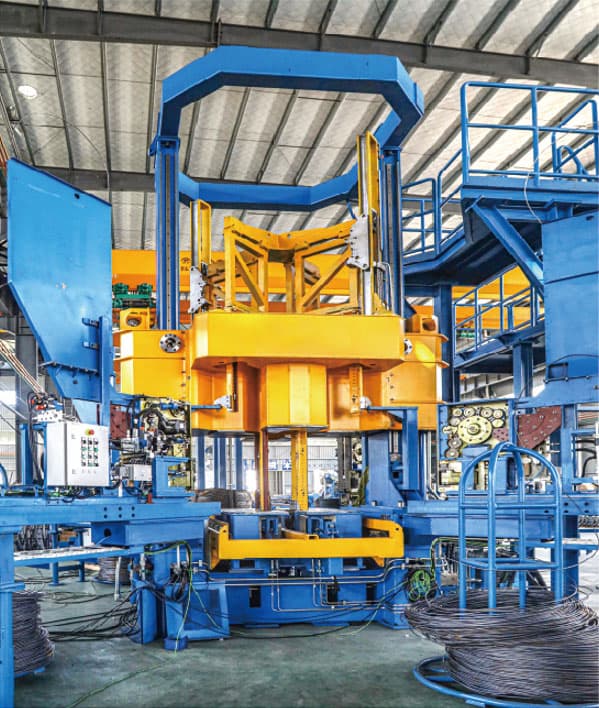

Automated wire rod coil compression and strapping machine, vertical configuration TR-350-4W
Strapping Machine Technical specification
| Parameter | Unit | Value |
|---|---|---|
| Overall dimensions (L × W × H) | mm | 9900 × 9867 × 8042 |
| Coil dimensions | mm | Outer diameter: 1250 Inner diameter: 850 |
| Number of strappings | pcs. | 4 |
| Hydraulic system fluid pressure | MPa | 16 |
| Strapping position | — | Equally spaced along the circumference |
| Coil length after compacting | mm | 550 ~ 3700 |
| Strapping cycle time | s | ≤ 35 |
| Power supply | — | 380 V, 50 Hz |
| Tie wire diameter | mm | Ø 6.3 ~ 8.0 |
| Tie wire material | — | Q195–Q235 steel |
| Twist type | — | Twist knot |
| Compacting force | kN | 60 ~ 400 |
