STRAPPING EQUIPMENT FOR WIRE COILS AND ROLLED PRODUCTS

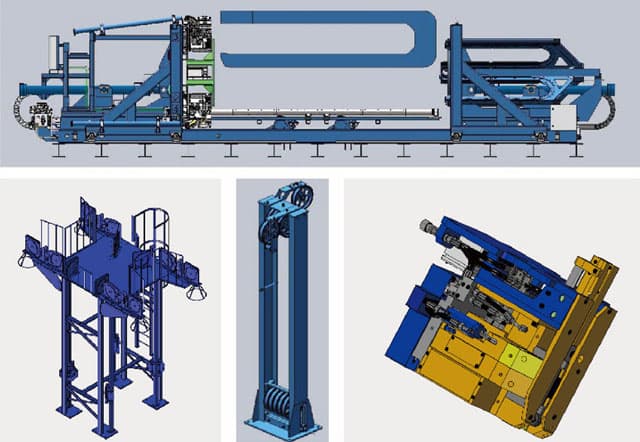

Automated wire rod coil pressing and banding system, horizontal configuration with interchangeable head TG-230-4C
Technical specification of the pressing and banding system
| Parameter | Unit | Value |
|---|---|---|
| Overall dimensions (L × W × H) | mm | 14000 × 2560 × 3400 |
| Coil dimensions | mm | Max. outer diameter: 1400 Inner diameter: 850 (±100) |
| Number of strappings | pcs. | 4 |
| Compressed air supply | MPa | 0.4 ~ 0.6 |
| Strapping position | — | Equally spaced along the circumference |
| Coil length after compacting | mm | 650 ~ 2400 |
| Strapping cycle time | s | ≤ 35 |
| Maximum power consumption | kW | 100 ~ 150 |
| Strap size | mm | 31.75 × 0.8 ~ 0.9 |
| Tie wire diameter | mm | Ø 6.3 ~ 8.0 |
| Strap material | — | Cold rolled steel strap |
| Tie wire material | — | Q195–Q235 steel |
| Seal type (for steel strap) | — | Sealless joint (die-cut notched) |
| Twist type (for wire) | — | Twist knot |
| Compacting force | t | 10 ~ 50 |
