FASTENER NYLON POWDER COATING LINES

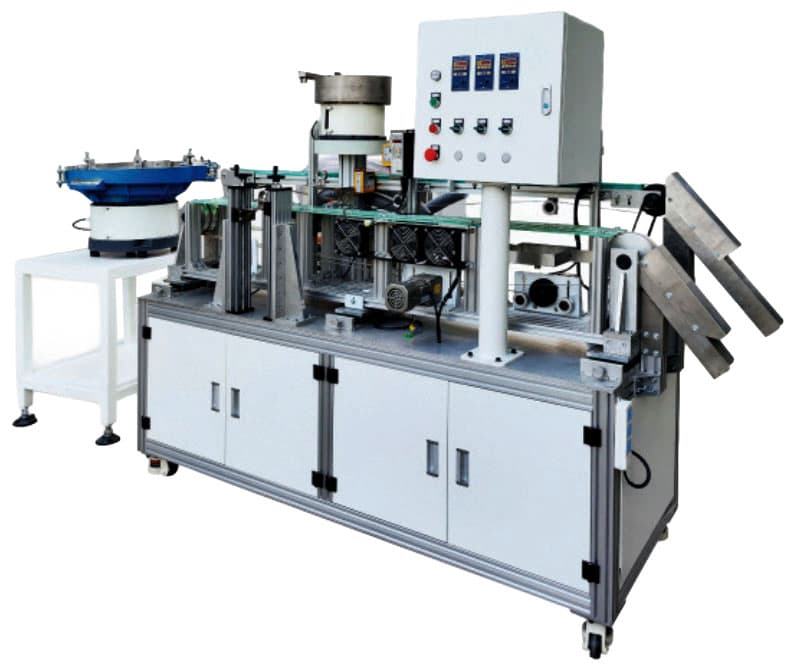

Automatic twin-belt production line for nylon powder coating on fasteners
| Parameter | Unit | Value |
|---|---|---|
| Line length | mm | 1600 / 2000 / 3000 |
| Line width | mm | 500 |
| Line height | mm | 1600 |
| Installed power | kW | 22 |
| Preheating temperature | °C | 240 - 350 |
| Line speed | m/min | 1 - 6 |
| Workpiece size range | - | M1.5 - M16 |
| Workpiece length | mm | 15 - 100 |
| Coating type | - | Nylon powder |
| Material feeding method | - | Vibratory bowl feeder |
| Heating method | - | High-frequency induction heating |
| Option | - | Vision inspection and sorting system with single or dual cameras |

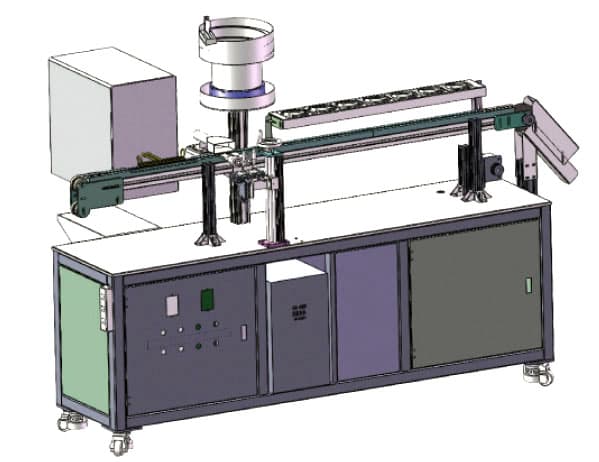

Automatic single-belt production line for nylon powder coating on fasteners
| Parameter | Unit | Value |
|---|---|---|
| Line length | mm | 2000 |
| Line width | mm | 500 |
| Line height | mm | 1600 |
| Installed power | kW | 22 |
| Preheating temperature | °C | 240 - 350 |
| Line speed | m/min | 1 - 6 |
| Workpiece size range | - | M1.5 - M8 |
| Workpiece length | mm | 15 - 20 |
| Coating type | - | Nylon powder |
| Material feeding method | - | Vibratory bowl feeder |
| Heating method | - | High-frequency induction heating |
| Option | - | Vision inspection and sorting system with single or dual cameras |
Video of the fastener nylon powder coating line in operation

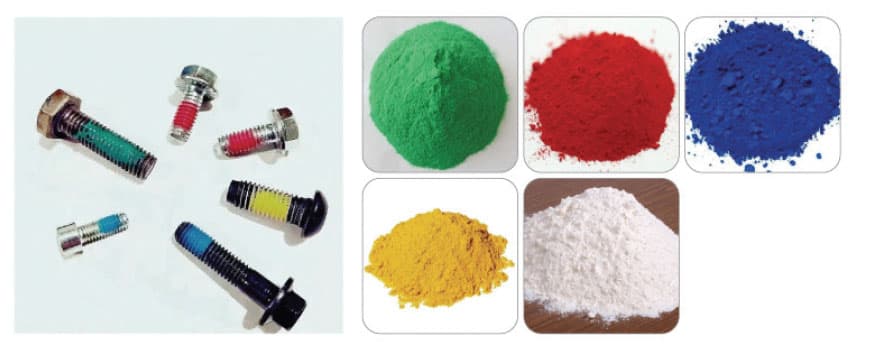

Nylon adhesive powder
| Parameter | Unit / Test method | Typical value |
|---|---|---|
| Color | - | Blue / Red / Green / Yellow / White |
| Density | ASTM D792 | 1.12 |
| Coverage per square foot | Calculated | 171.69 |
| Gloss | ASTM D523 | 40 - 80 |
| Shore hardness | ASTM D2240 | 70 - 80 |
| Tensile strength | ASTM D638 | 6000 psi |
| Melting point | ASTM D789 | 175°C |
| Salt spray corrosion resistance | ASTM B117 | 1000+ hours (X-scribe) |
| Dielectric strength | ASTM D149 | 32,000 - 47,000 V/mm |
| Elongation | ASTM D638 | 15% |
| Abrasion resistance | ASTM D4060 | 8 - 18 mg |
Examples of finished fasteners with adhesive coating
