Steel Tube and Bar packing lines



Electromagnet Steel Tube stacking and packing line

forming and transfer system
Forming and transfer system of electromagnet steel tube stacking and packing line


The machinery is applied for arraying, counting, stacking, strapping, ends covering, wrapping and ends fixing of steel pipes / bars, aluminium tubes / bars etc.

The line is composed of the elevating system, counting system, ends aligning system, shifting system, bundling system, strapping system, wrapping machine, ends covering machine, end fixing system, weighing system, electrical cabinet, guardrails, hydraulic station etc.


Brief Specification of Packaging Equipment


Scope of Applicationsteel tubes / bars, aluminum tubes / bars
Tube Diameter20 - 120 mm
Lenght4000 - 6000 mm
Bundle Weight≤3 T
Bundle Diameter300 - 700 mm


Electromagnetic Steel Tube stacking and packing line

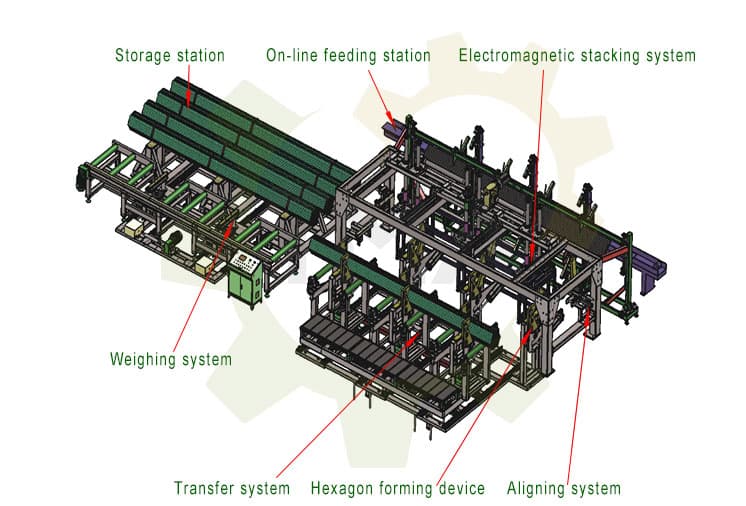

Electromagnetic Steel Tube stacking and packing line layout



Packing line composition

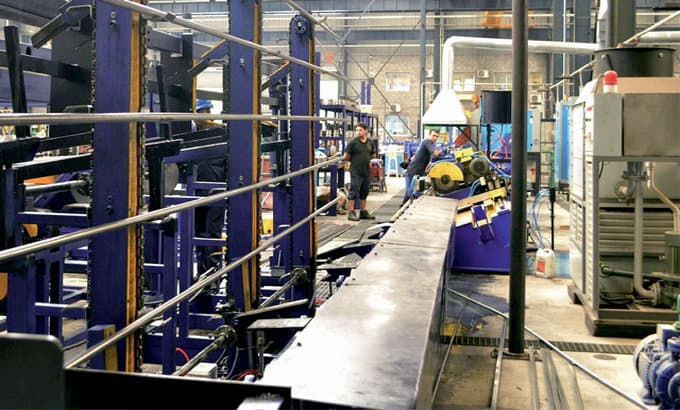

on-line feeding
On-line feeding

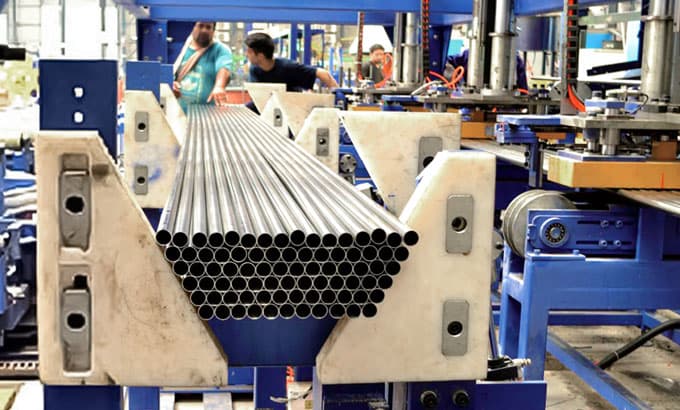

pipe hexagonal stacking
Pipe hexagonal stacking

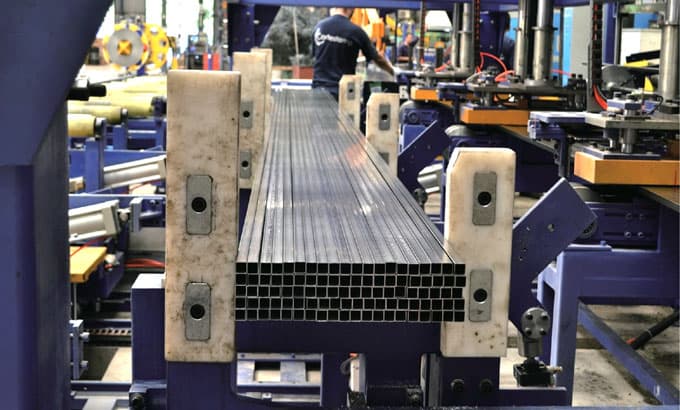

pipe rectangular stacking
Pipe rectangular stacking

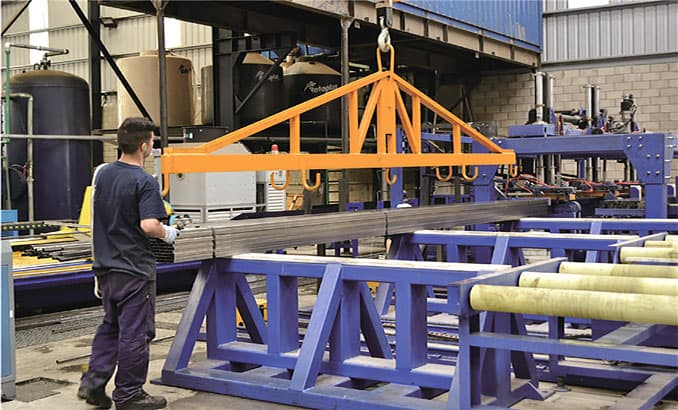

manual hoisting
Manual hoisting

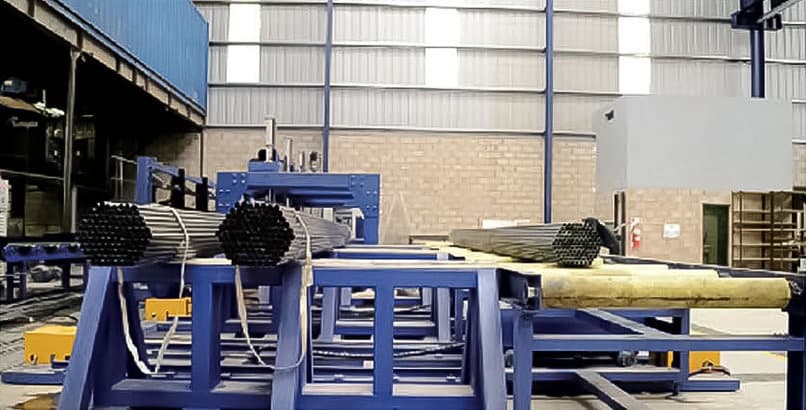

weighing storage station
Weighing storage station



Mechanical Steel Tube stacking and packing line

Mechanical Steel Tube stacking and packing line


This packing line is applied for arraying, counting, stacking, strapping, ends covering, stretch wrapping and ends fixing of the stleel pipes / bars, aluminum tubes / bars etc.

The packing line composed of the elevating system, counting system, ends aligning system, shifting system, bundling system.


Brief Specification of Packaging Equipment


Scope of Applicationsteel tubes / bars, aluminum tubes / bars
Tube Diameter20 - 120 mm
Lenght4000 - 6000 mm
Bundle Weight≤3 T
Bundle Diameter300 - 700 mm


Mechanical Steel Tube stacking and packing line

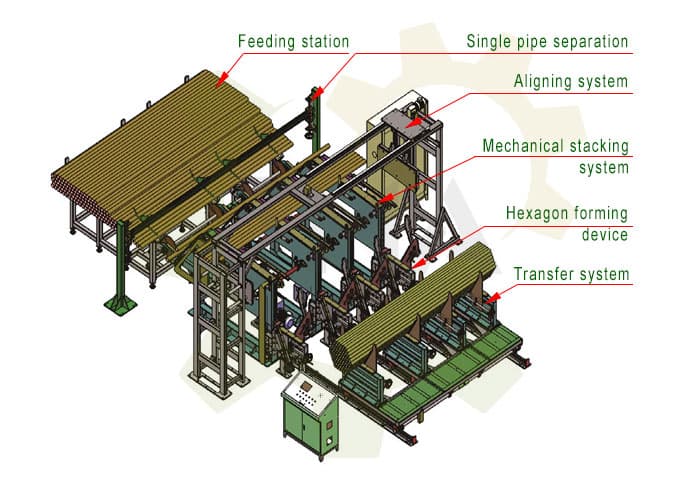

Mechanical Steel Tube stacking and packing line layout



Packing line composition

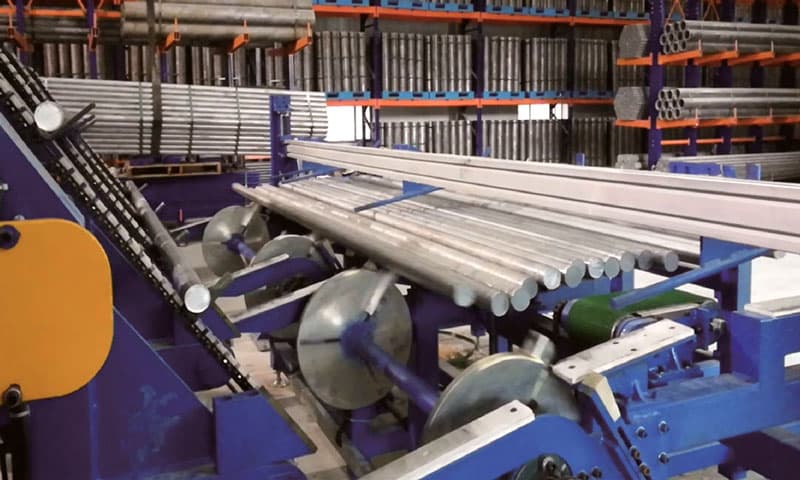

bar feeding
Bar feeding

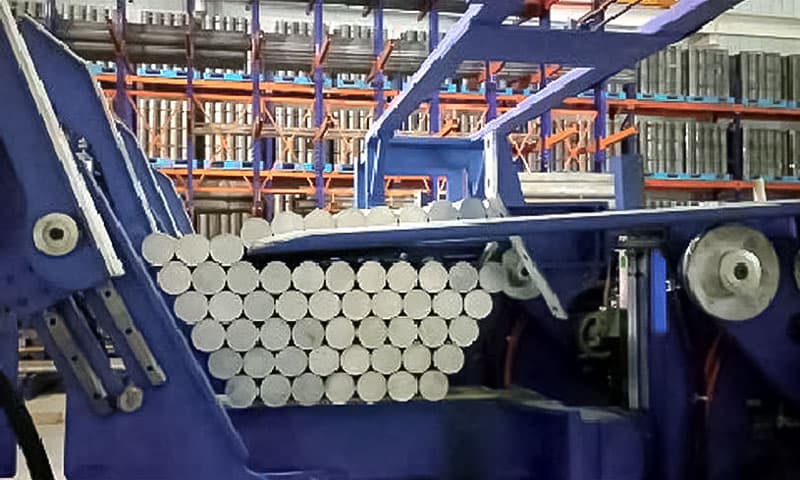

bar stacking
Bar stacking

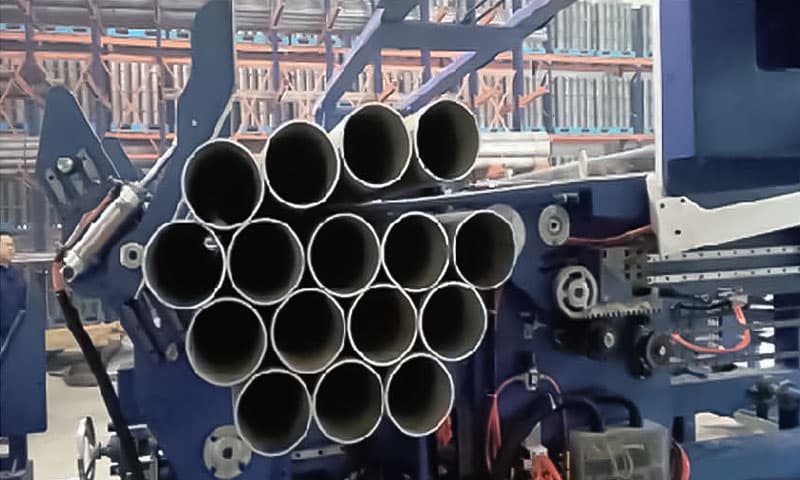

tube stacking
Tube stacking

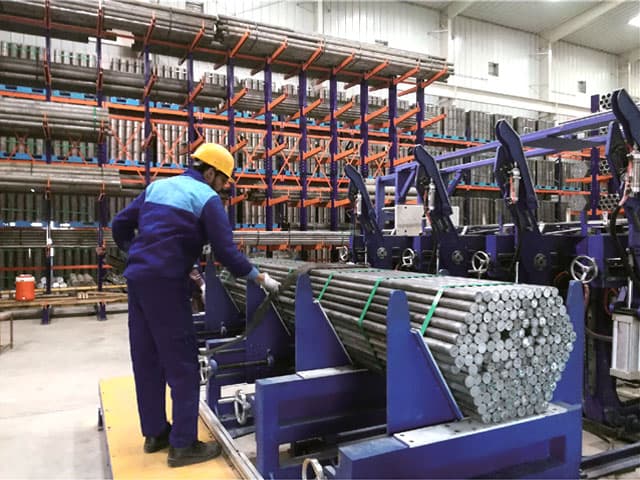

steel strapping
Steel strapping

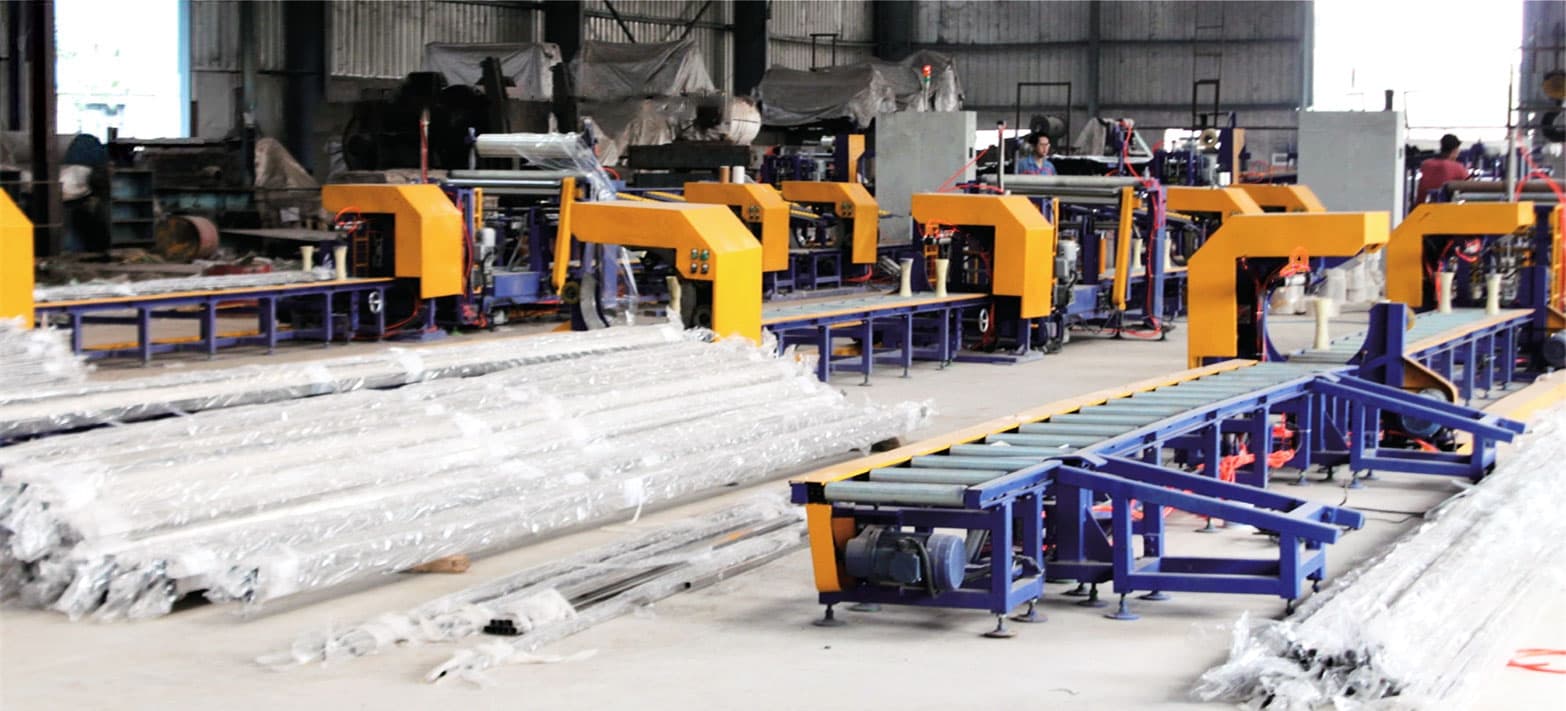

Steel tube bagging machine

steel tube bagging machine


Brief specification of steel tube bagging machine

The line is applied for single or multiple tube bagging, and operations of coding, labeling, bundling, strapping etc.


This line includes feeding system, bagging machine, labeling machine, collecting and strapping system, wrapping machine, storage system and etc are for optional according to different needs.


Scope of Applicationsingle / multiple steel tubes
Single tube diameter20 - 80 mm
Lenght2000 - 6000 mm
Bundle Diameter≤300 mm
Packing materialrolled plastic film / plastic film sheets

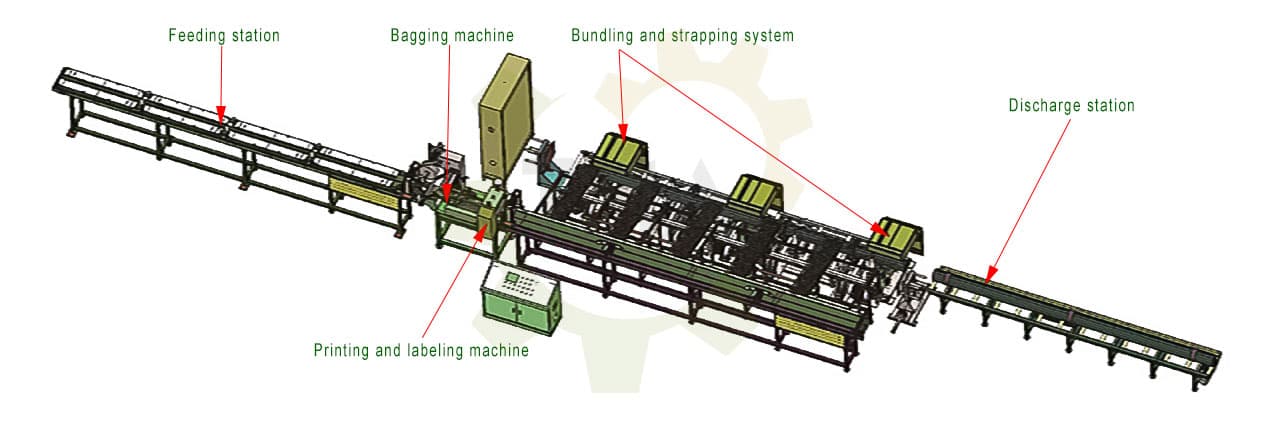

steel tube bagging machine layout
Steel tube bagging machine layout


Steel Tube bagging machine composition

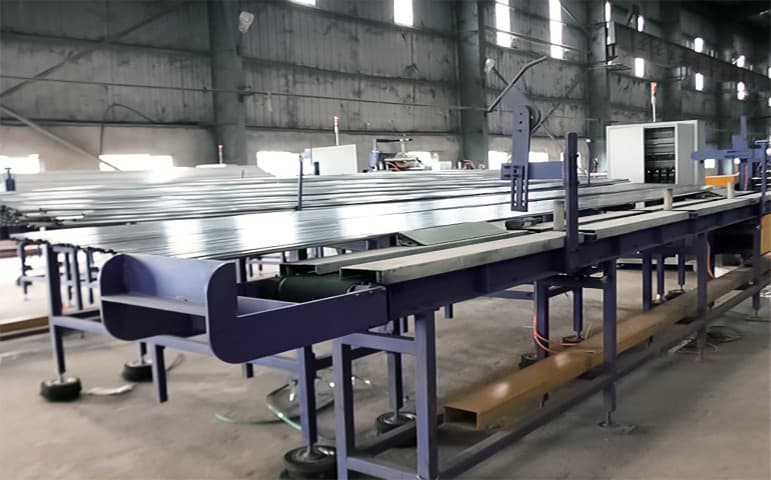

round tube feeding system
Round tube feeding system
square tube feeding system
Square tube feeding system
bagging machine
Bagging machine

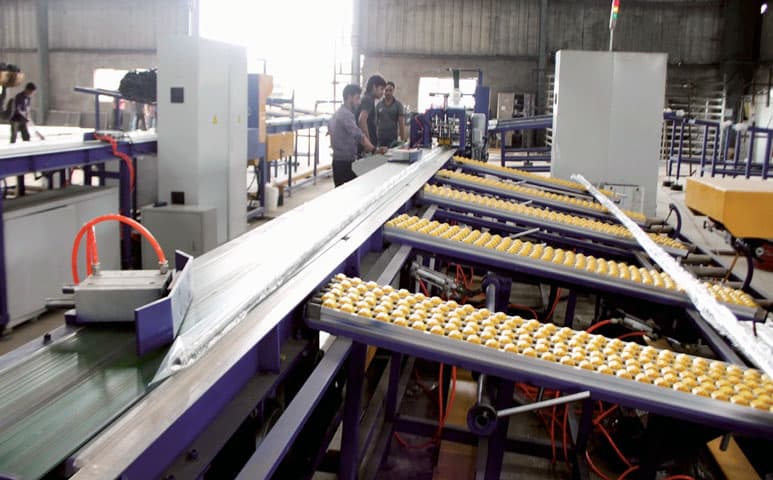

end collection system
End collection system
