STRAPPING EQUIPMENT FOR WIRE COILS AND ROLLED PRODUCTS

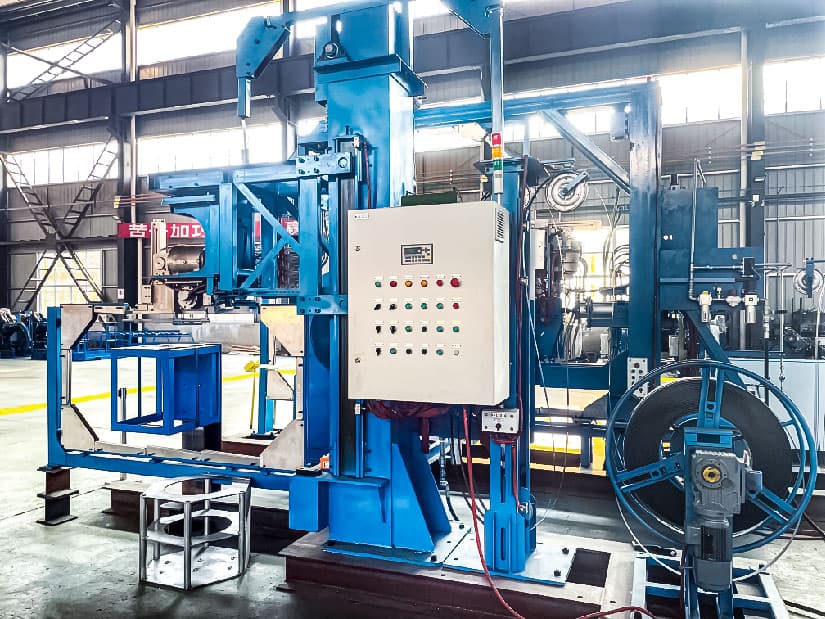

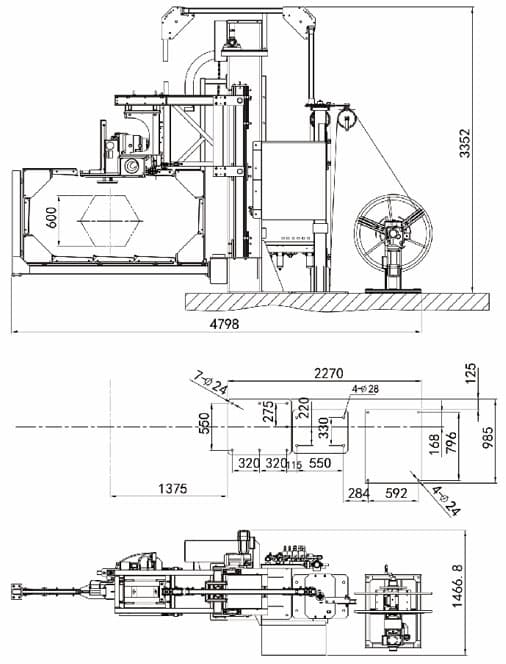

Automated steel profile and structural section bundling equipment TF-400-B
Technical specification of the equipment
| Parameter | Unit | Value |
|---|---|---|
| Overall dimensions (L × W × H) | mm | 4798 × 3352 × 1256 |
| Permissible stack width | mm | 150 - 550 |
| Number of strappings per cycle | pcs. | 1 |
| Compressed air supply | MPa | 0.5 ~ 0.7 |
| Strapping position | - | Top |
| Permissible stack height | mm | 150 ~ 600 |
| Strapping cycle time | s | ≤ 30 |
| Power supply | - | 380 V, 50 Hz |
| Strap size | mm | 31.75 × 0.7 ~ 1.1 |
| Strap material | - | Cold rolled steel strap |
| Seal type | mm | Figure-of-eight seal (with clip), 50 × 32 |
| Strap tension force | kN | 4 ~ 20 |

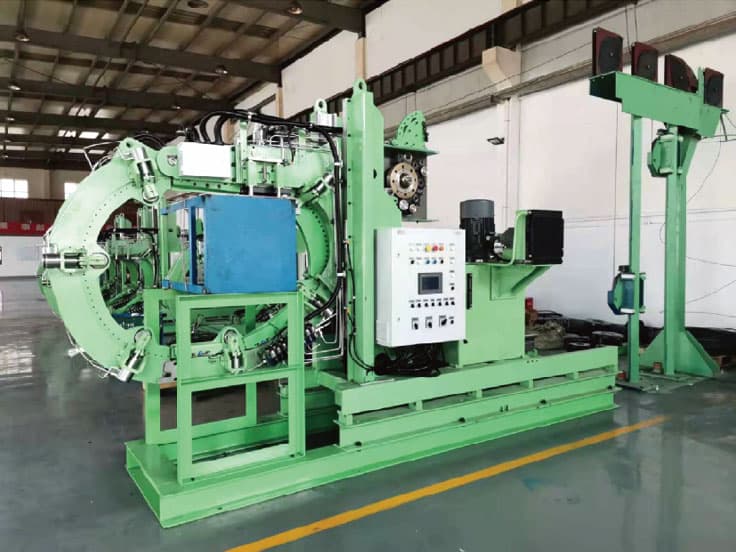

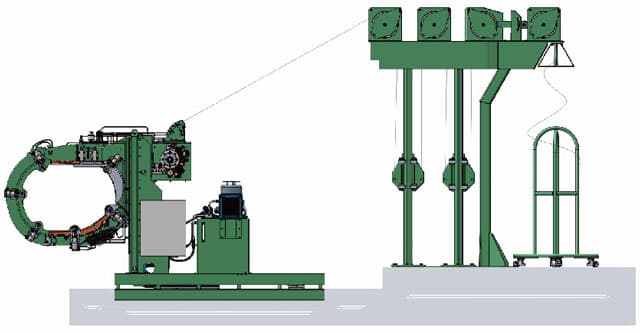

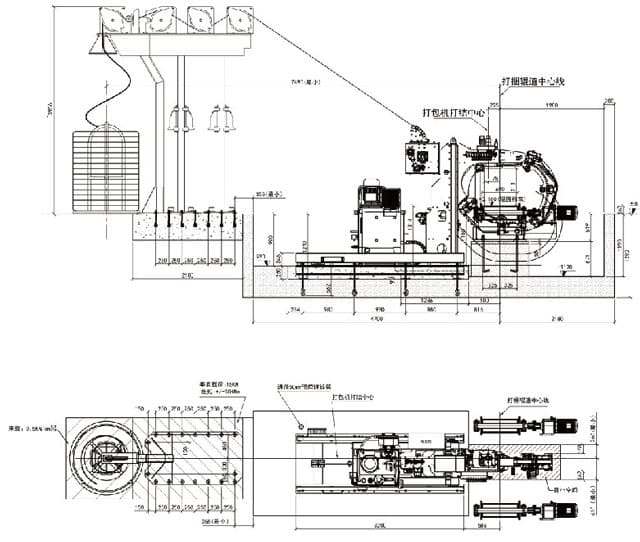

Automated strapping equipment for structural steel sections and profiles TF-400-C
Technical specification
| Parameter | Unit | Value |
|---|---|---|
| Overall dimensions (L × W × H) | mm | 4883 × 1583 × 2834 |
| Decoiler overall dimensions (L × W × H) | mm | 3519 × 1300 × 3964 |
| Number of strappings per cycle | pcs. | 1 ~ 2 |
| Hydraulic system fluid pressure | MPa | 14 |
| Strapping position | - | Top |
| Bundle stack dimensions | mm | From 150 × 150 to 650 × 650 |
| Strapping cycle time | s | ≤ 15 (double strapping) |
| Power supply | - | 380 V, 50 Hz |
| Tie wire diameter | mm | Ø 6.3 ~ 8.0 |
| Tie wire material | - | Q195 - Q235 steel |
| Twist type | - | Twist knot |
| Wire tension force | kN | ~ 10 |
