STRAPPING EQUIPMENT FOR WIRE COILS AND ROLLED PRODUCTS

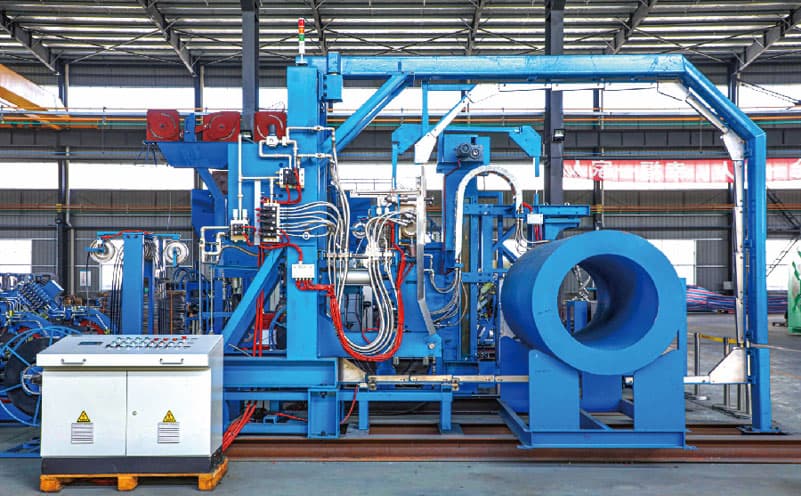

Automated steel coil strapping equipment for radial and circumferential applications TPL-20-S
Strapping equipment technical specification
| Parameter | Unit | Value |
|---|---|---|
| Overall dimensions (L × W × H) | mm | 7145 × 3496 × 1000 |
| Permissible coil width | mm | 550 ~ 2000 |
| Number of strappings per cycle | pcs. | 1 ~ 5 |
| Compressed air supply | MPa | 0.5 ~ 0.7 |
| Strapping position | - | Side (side strapping head) |
| Permissible coil outer diameter | mm | Ø 900 ~ 2250 |
| Strapping cycle time | s | ≤ 35 |
| Power supply | - | 380 V, 50 Hz |
| Strap size | mm | 31.75 × 0.7 ~ 1.1 |
| Strap material | - | Cold rolled steel strap |
| Seal type | mm | Figure-of-eight seal (with clip), 50 × 32 |
| Strap tension force | kN | 4 ~ 20 |
