FASTENER COATING LINE AUXILIARY EQUIPMENT AND ACCESSORIES

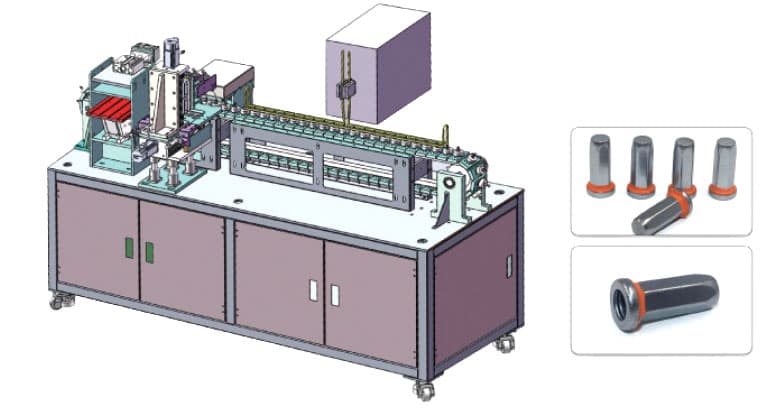

Automatic adhesive dispenser for blind rivet nuts

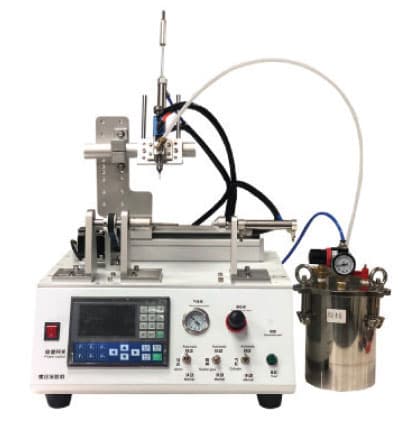

Needle-type adhesive dispenser for fasteners
| Parameter | Unit | Value |
|---|---|---|
| Workpiece diameter | mm | 5 - 100 |
| Operating mode | - | Manual / preset-volume dispensing |
| Applicable adhesive types | - | Thread sealant, anaerobic adhesive, threadlocker, anti-loosening adhesive, pipe thread sealant, and other adhesive compounds |
| Applicable workpieces | - | Screws, bolts, studs, machine screws, nuts, self-tapping screws, washers, pneumatic fittings, and other fastening components |

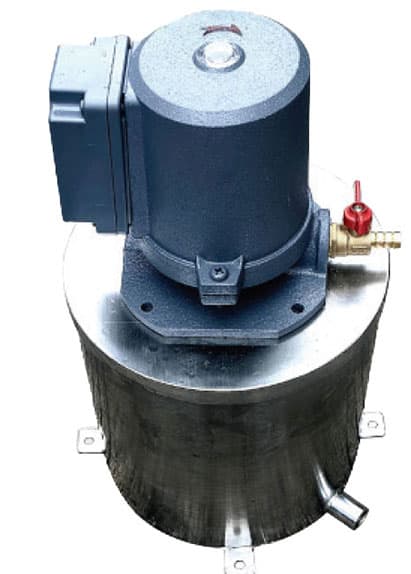

Electric vane pump
for adhesive supply
| Parameter | Unit | Value |
|---|---|---|
| Overall dimensions (L × W) | mm | 220 × 380 |
| Power supply voltage | V | 220 |
| Power | W | 95 |
| Flow rate | L/min | 6 |
| Working medium | - | Chemical adhesive compounds |

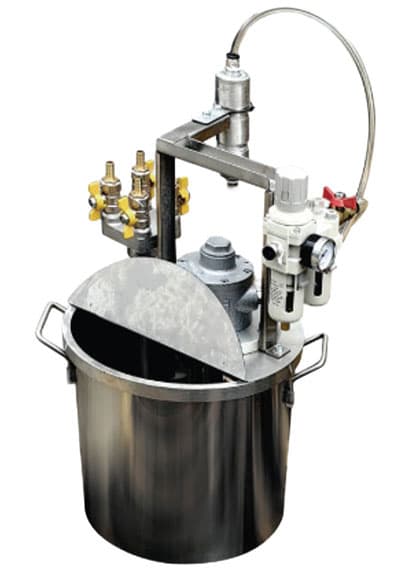

Pneumatic vane pump
for adhesive supply
| Parameter | Unit | Value |
|---|---|---|
| Overall dimensions (L × W) | mm | 300 × 500 |
| Operating air pressure | MPa | 0.2 |
| Equivalent power | kW | ~1.3 |
| Flow rate | L/min | 12 |
| Working medium | - | Chemical adhesive compounds |

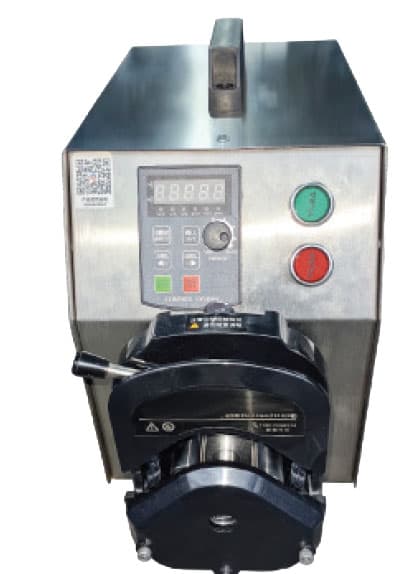

Peristaltic pump for feeding
liquid and semi-liquid media
Peristaltic pump is used for the metered feeding of liquid and semi-liquid media in various industries:
- Fastener industry - spot application of adhesive compounds (chemical adhesives, adhesive 204).
- Medical equipment - use in dialysis machines and infusion pumps.
- Laboratory equipment - supply of chemical reagents and various solutions.
- Food and beverage industry - dosing of liquid ingredients and additives.
- Chemical industry - supply of various liquid and semi-liquid media, including aggressive and corrosive fluids.
- Water treatment systems - dosing of reagents and chemical solutions for water treatment.

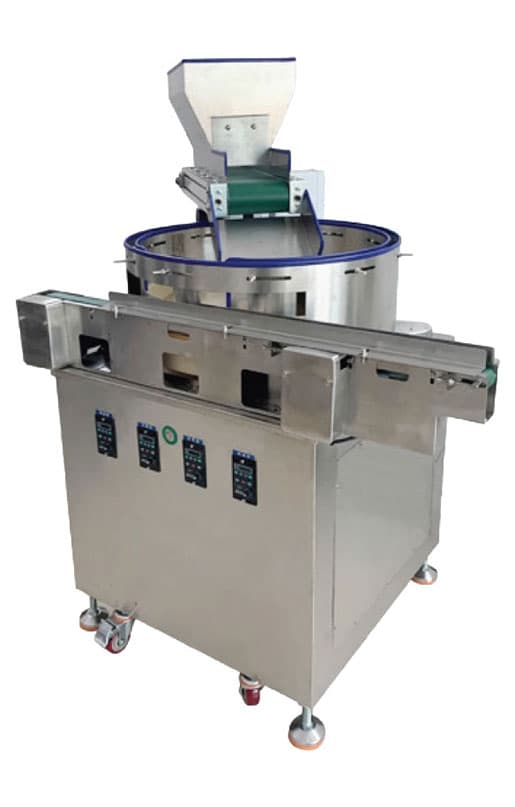

Centrifugal bowl feeder for automatic parts feeding
| Parameter | Unit | Value |
|---|---|---|
| Disc diameter | mm | 400 - 1000 |
| Power | kW | 0.8 (dual motors) |
| Construction material | - | Stainless steel / carbon steel / plastic |
| Part conveying speed | mm/s | 50 - 400 |
| Capacity | pcs/min | 100 - 1000 |
| Workpiece length | mm | 10 - 200 |
| Configuration | - | Single-disc / dual-disc version |
| Option | - | Feed hopper |
Centrifugal bowl feeder (rotary disc feeding mechanism) is used for automatic feeding and orientation of parts in production lines.

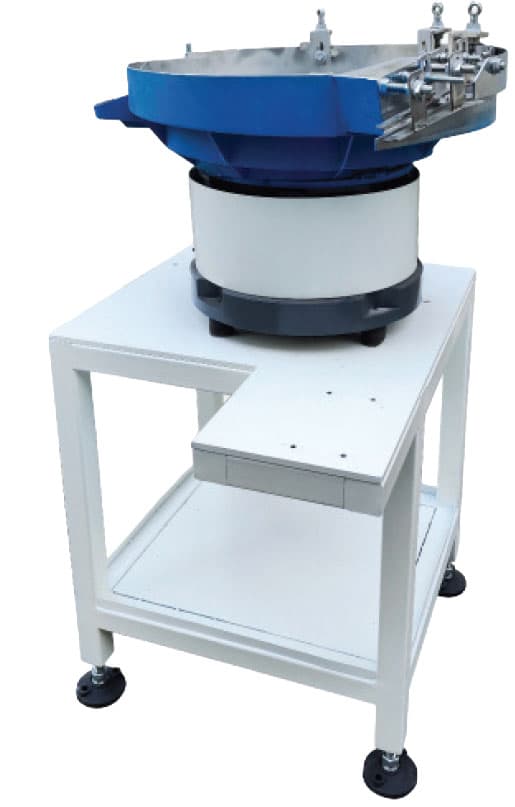

Vibratory bowl feeder for fasteners
| Parameter | Unit | Value |
|---|---|---|
| Power | W | 450 |
| Power supply voltage | V | 220 |
| Material of the bowl | - | SUS304 stainless steel with polyurethane surface coating |
Vibratory bowl feeder is an efficient solution for feeding small components in automated production systems, ensuring a stable and accurate feed without damaging the parts.
The bowl is made of SUS304 stainless steel with a polyurethane surface coating, which effectively prevents scratches on the fasteners and reduces noise levels during operation. The equipment features simple installation and control, as well as high cost-effectiveness.
Bowl diameter, discharge parameters, and other equipment configurations are customized according to the customer's technical specifications.

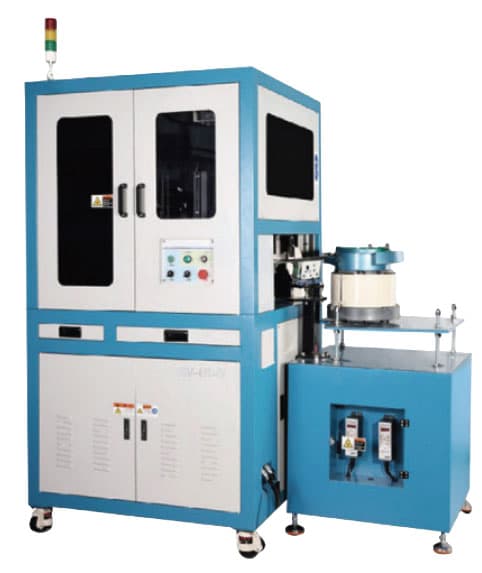

Fastener vision inspection and sorting system after coating
| Parameter | Standard configuration | Option |
|---|---|---|
| Frame | 950 × 850 × 1800 mm, blue color | Gray color |
| Feeding system | Vibratory feeder (vibratory bowl feeder) | Conveyor feeding |
| Discharge system | Bottom discharge, 2 outlets | Upper conveyor discharge / upper chute discharge (2 outlets) |
| Glass disc | 500 mm flat glass disc | 500 mm slotted glass disc (according to customer drawings) |
| Camera | 1.3 MP | 5 MP / 12 MP / 25 MP / higher resolutions available |
| Lens | FA lens, 8 - 50 mm focal length | 0.3× / 0.5× / 0.7× / 1× / 2× telecentric lenses, borescopes, and external inspection lenses |
| Light source | 70 mm ring light | 50 mm / 80 mm backlight, 120 mm ring light, dome light, coaxial light, and other light sources |
| Industrial PC | 12th-generation CPU, 8 GB RAM + 256 GB storage, 5 Ethernet ports | 12th-generation CPU, 16 GB RAM + 256 GB storage, RT3063, 5 Ethernet ports |
| Monitor | 21.5", 1920 × 1080 resolution | - |
| Inspection algorithm | 1 - 12 inspection channels (without deep learning) | 1 - 12 inspection channels (with deep learning) |
| Control system | Dedicated inspection machine controller | - |
| Rotary mechanism | Motor + flange-mounted planetary gearbox | - |
| Network interfaces | 5 Ethernet ports | Additional 4-port network card |

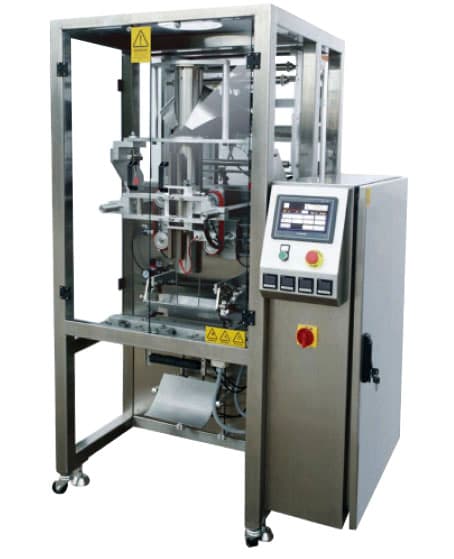

Automatic packaging equipment for fasteners
| Parameter | Unit | Value |
|---|---|---|
| Construction material | - | SUS304 stainless steel |
| Overall dimensions (L × W × H) | mm | 1250 × 1500 × 1450 |
| Rated power | kW | 2.0 |
| Applicable products | - | Screws, nuts, pins, washers, and various granular products (pharmaceuticals, plastic pellets, etc.) |

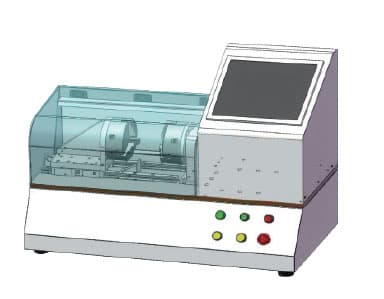

Benchtop digital torque tester
| Parameter | Unit | Value |
|---|---|---|
| Overall dimensions | mm | 900 × 400 × 460 |
| Equipment power | kW | 1.0 |
| Speed range | rpm | 0 - 10 |
| Report print format | mm | 80 × 100 |
