FASTENER THREADLOCKER AND ADHESIVE COATING LINES

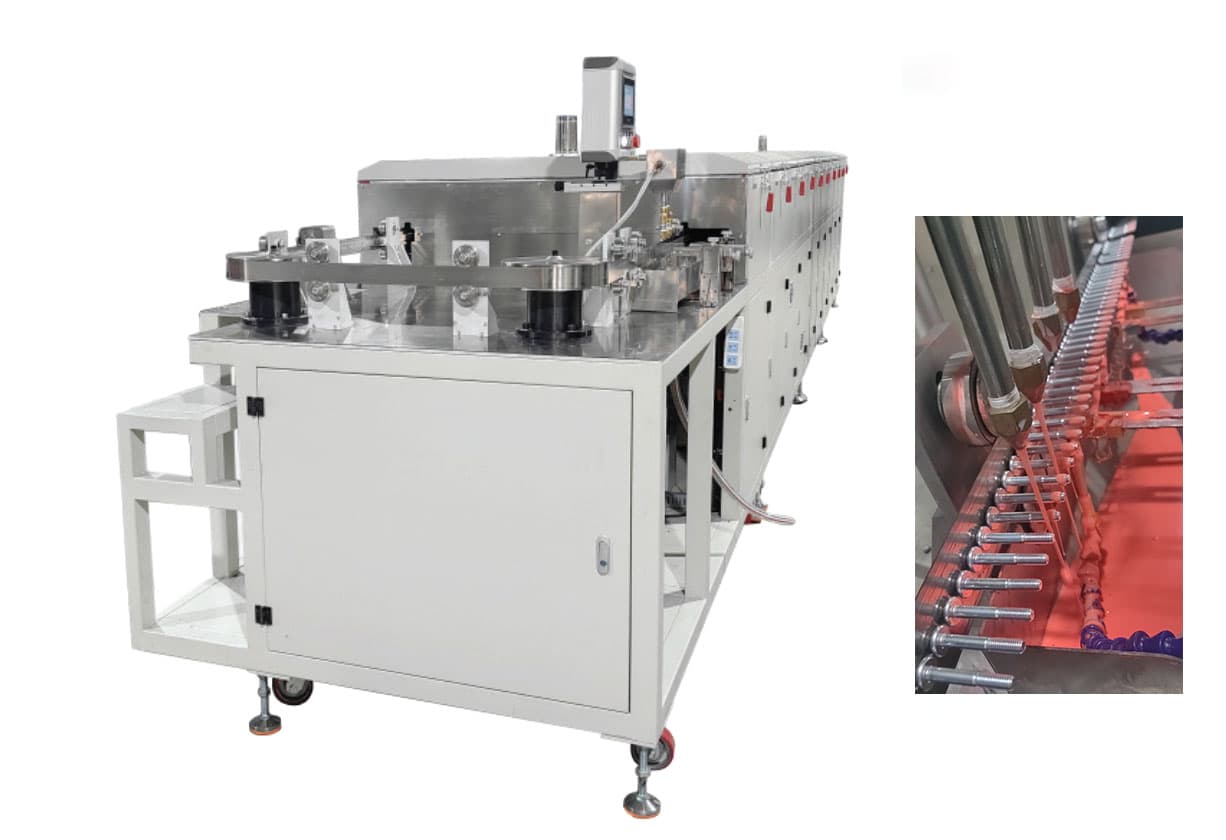

Automatic five-roller belt-type production line for adhesive coating on fasteners
| Parameter | Unit | Value |
|---|---|---|
| Line length | mm | 6000 / 8000 / 9000 |
| Line width | mm | 1400 |
| Line height | mm | 1400 |
| Installed power | kW | 30 |
| Temperature control range | °C | Ambient temperature to 200 |
| Line speed | m/min | 1 - 6 |
| Workpiece size range | - | M3 - M20 |
| Workpiece length | mm | 15 - 200 |
| Applicable adhesives | - | Chemical adhesives (e.g. 593), water-based adhesives (e.g. 204) |
| Adhesive feeding method | - | Peristaltic pump or vane pump |
| Heating method | - | Finned heating elements and hot-air drying system |
| Option | - | High-frequency preheating system |
| Option | - | Vision inspection and sorting system with single or dual cameras |

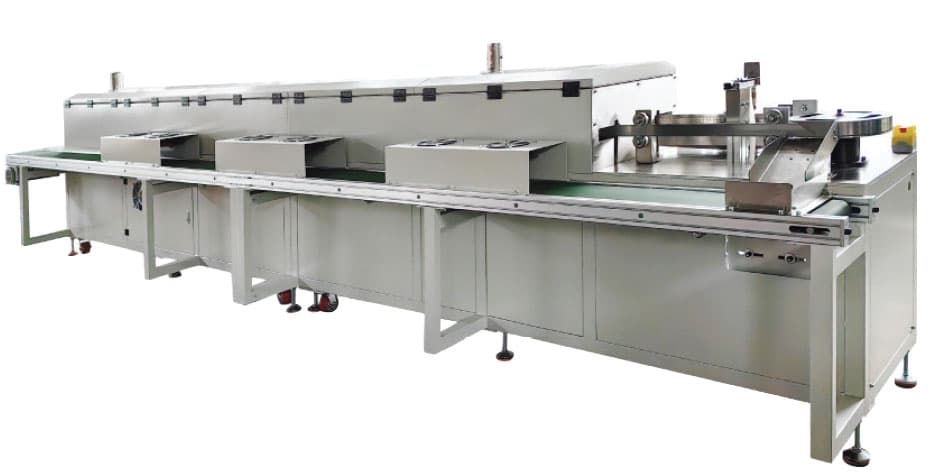

Automatic belt-type production line for adhesive coating on fasteners
| Parameter | Unit | Value |
|---|---|---|
| Line length | mm | 6000 / 8000 / 9000 |
| Line width | mm | 600 - 850 |
| Line height | mm | 1200 |
| Installed power | kW | 30 |
| Temperature control range | °C | Ambient temperature to 200 |
| Line speed | m/min | 1 - 6 |
| Workpiece size range | - | M3 - M20 |
| Workpiece length | mm | 15 - 200 |
| Applicable adhesives | - | Chemical adhesives (e.g. 593), water-based adhesives (e.g. 204) |
| Adhesive feeding method | - | Peristaltic pump or vane pump |
| Heating method | - | Finned heating elements and hot-air drying system |
| Option | - | High-frequency preheating system |
| Option | - | Vision inspection and sorting system with single or dual cameras |

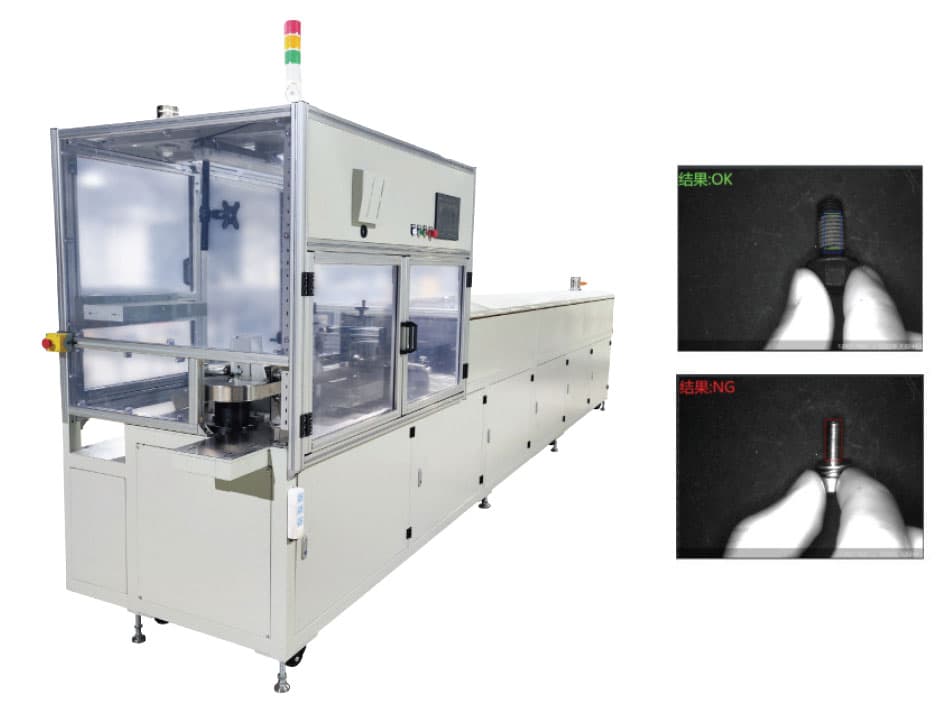

Automatic production line for adhesive coating on fasteners
| Parameter | Unit | Value |
|---|---|---|
| Line length | mm | 6000 / 8000 / 9000 |
| Line width | mm | 600 - 850 |
| Line height | mm | 1200 |
| Installed power | kW | 30 |
| Temperature control range | °C | Ambient temperature to 200 |
| Line speed | m/min | 1 - 6 |
| Workpiece size range | - | M3 - M20 |
| Workpiece length | mm | 15 - 200 |
| Applicable adhesives | - | Chemical adhesives (e.g. 593), water-based adhesives (e.g. 204) |
| Adhesive feeding method | - | Peristaltic pump or vane pump |
| Heating method | - | Finned heating elements and hot-air drying system |
| Option | - | Vision inspection and sorting system with single or dual cameras |
| Option | - | High-frequency preheating system |

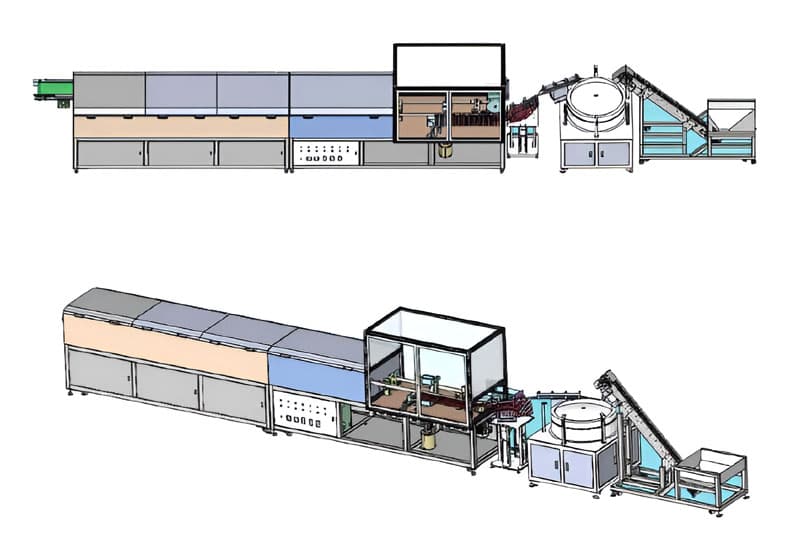

Automatic integrated feeding and adhesive coating line for fasteners

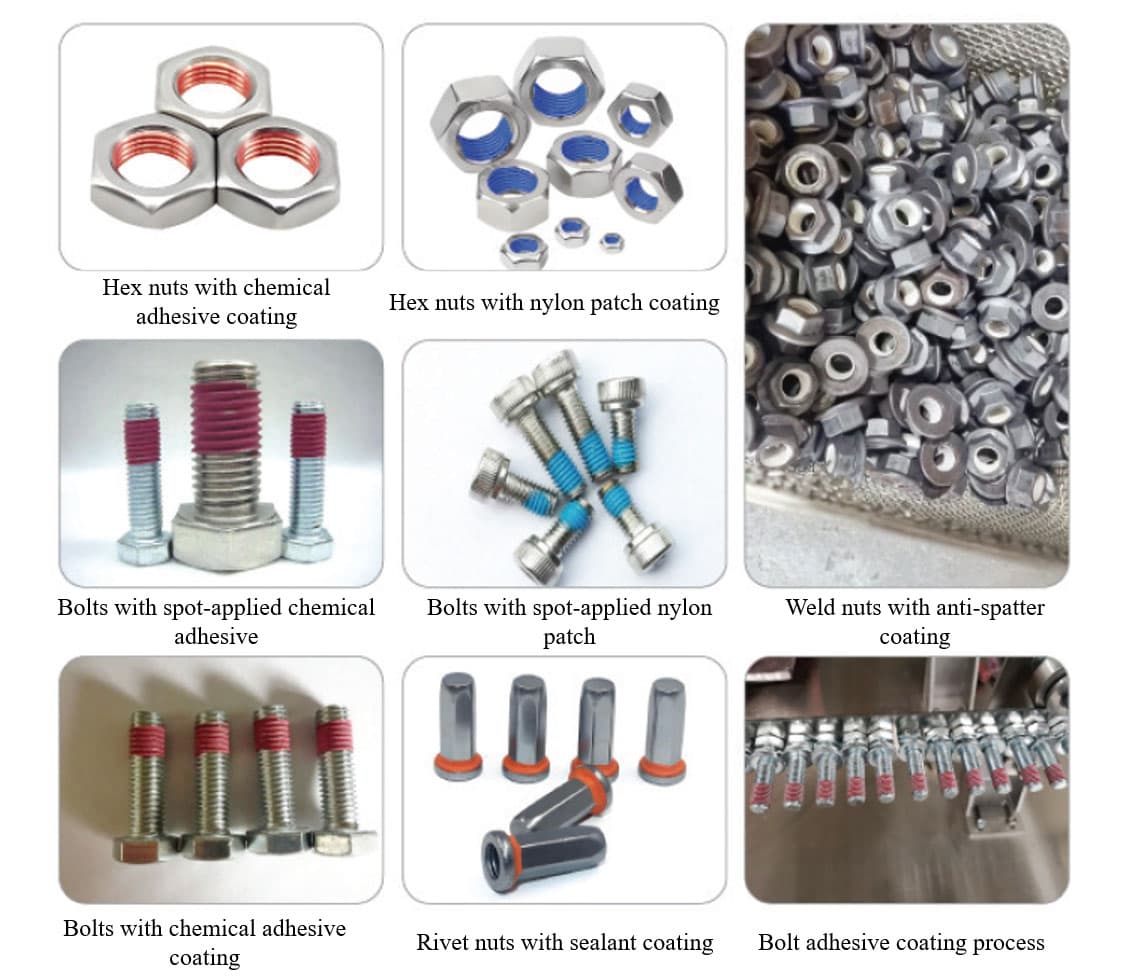

Examples of finished fasteners with adhesive coating
