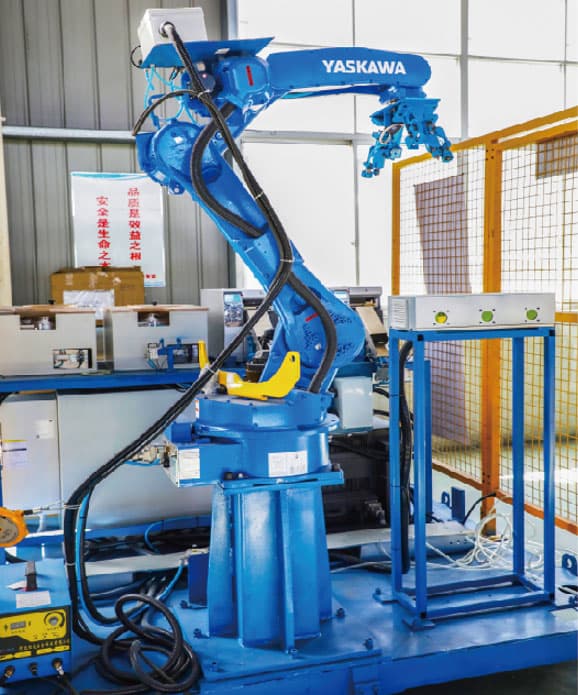

Robotic equipment for automated identification tag welding on long steel products AS-1000-R
Robotic equipment technical specification
| Parameter | Unit | Value |
|---|---|---|
| Overall dimensions (L × W × H) | mm | 2510 × 2210 × 2227 |
| Product diameter | mm | 10 ~ 40 |
| Number of welded tags | pcs. | 1 ~ 2 |
| Compressed air supply | MPa | 0.4 ~ 0.6 |
| Tag welding location | - | End face (front surface) |
| Bundle outer diameter | mm | Ø 200 ~ 500 |
| Welding cycle time | s | 1 tag: < 20 2 tags: < 30 |
| Power supply | - | 380 V, 50 Hz |

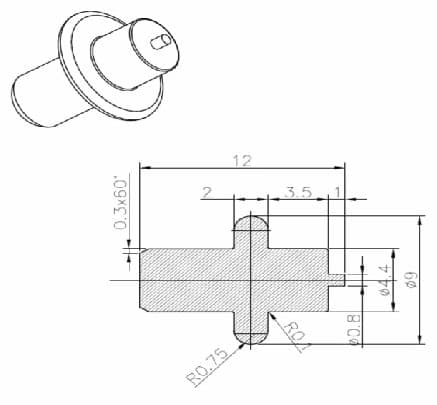

| Welding stud type | - | See stud drawing |
| Welding stud material | - | Carbon steel |
| Welding method | - | Capacitor discharge welding (CD welding) |
| Product length | m | 9 / 12 |
