Steel Conveyor Belt for Heat Treatment Furnace



Steel conveyor belt for heat treatment furnace: reliable performance in high-temperature environments


wire mesh steel conveyor belt for continuous heat treatment furnace


In industrial heat treatment processes, the Steel Conveyor Belt for Heat Treatment Furnace plays a critical role in ensuring the smooth, efficient, and safe transportation of metal components through high-temperature zones. Whether you're operating a continuous furnace, tempering furnace, or sintering line, selecting the right conveyor belt is essential for maximizing productivity and minimizing downtime.

Why Steel Conveyor Belts Matter in Heat Treatment Furnaces

Steel conveyor belts are specifically engineered to withstand extreme heat and harsh furnace environments. These belts are often made from stainless steel wire, offering excellent heat resistance, corrosion protection, and long service life. Their durability makes them ideal for demanding applications like tempering, annealing, sintering, and other thermal processing of metalware.

Among the most popular configurations is the steel mesh belt conveyor, which provides uniform airflow and heat distribution. This is particularly important in heat-resistant conveyor belts for continuous furnaces, where consistent temperature exposure is critical for metallurgical precision.


Key Benefits of a Stainless Steel Wire Conveyor Belt

  • High Thermal Resistance: Designed to operate continuously at elevated temperatures without warping or degrading.
  • Strength and Longevity: Stainless steel construction ensures high tensile strength and resistance to mechanical stress.
  • Customizable Design: Mesh size, weave pattern, and belt width can be tailored to suit specific furnace types and load requirements.
  • Clean Processing: Steel belts leave minimal residue and are easy to clean, maintaining product quality and furnace hygiene.


Whether used in conveyor belts for sintering and heat treatment furnaces or conveyor belts for tempering furnaces for metalware, these solutions deliver consistent, repeatable performance, critical for industries like automotive, aerospace, fastener production, and steel fabrication.


Choosing the Right Heat-Resistant Conveyor Belt

Selecting the right belt requires understanding your furnace's operational parameters - temperature range, load capacity, and cycle time. Consult with an experienced supplier who can recommend the best steel conveyor belt for heat treatment furnace based on your plant's unique requirements.


Conclusion: Upgrade to Efficiency and Reliability

For plant managers and factory owners looking to improve furnace operations, investing in a high-quality steel conveyor belt for heat treatment furnaces is a smart, long-term decision. These belts ensure greater throughput, better product quality, and reduced maintenance costs.



Looking to optimize your heat treatment line?

Contact us today for expert guidance and customized solutions in stainless steel wire conveyor belts, heat-resistant conveyor belts, and steel mesh belt conveyors designed for industrial furnace applications. Maximize your furnace's performance with reliable steel conveyor solutions. Let our experts help you choose the right belt for your production line.



WIRE MESH CONVEYOR BELT ORDER

Taiwan Metiz Alliance develops and manufactures steel wire mesh conveyor belts according to customers' drawings, specifications, or we can make the design by ourselves:

  • Stainless steel wire conveyor belts for continuous heat treatment furnaces
  • Flat heat-resistant conveyor belt for continuous furnaces with special weave
  • Thermostable stainless steel conveyor belts for special purposes
  • Flame-retardant conveyor belts for work with temperatures 400°C ~ 1070°C in different atmospheres
  • Cold-resistant conveyor belts
  • General-purpose conveyor belts
  • Transport belts for any industries
  • Flat mesh metal conveyor belt
  • Light duty conveyor mesh belt
  • Conveyor belts for the food industry

Steel mesh conveyors for furnaces are made of heat-resistant alloys that can be operated at high loads and temperatures from 200°C to 1150°C.

In order to select the right belt, all of the following specifications must be confirmed: steel material, working conditions, shape, size and weight of transported products. Steel conveyor belts are used for continuous furnaces for hardening, tempering, annealing, and other types of heat treatment.

конвейерная лента для проходных печей термообработки

Please provide the following information accordingly:

  • Write a technical specification of the conveyor belt
  • Specify conveyor belt's purpose
  • Specify conveyor belt's material (for example - stainless steel SUS304 or SUS314)
  • Specify the size of a conveyor belt, where:
    W - Total width of the belt.
    L - Wire belt length.
    H - Side wall's height of the belt.
    D1 - Spiral wire (transverse) diameter.
    D2 - Spiral rod (longitudinal) diameter.
Example:
tempering furnace belt W×L×H (mm) 1000×2200×30, D1 2.0 mm, D2 2.5 mm; material - stainless steel SUS 314


Table 1. Technical Specification
NoNameSizeMaterialSpecifications
W×L×H (mm)D1 (mm)D2 (mm)
1Tempering furnace belt1000×2200×302.02.5Stainless steel SUS314Belt for heat-treatment tempering furnace with max. temperature 930°C



SPECIAL PURPOSE THERMOSTATIC STAINLESS STEEL WIRE CONVEYOR BELTS

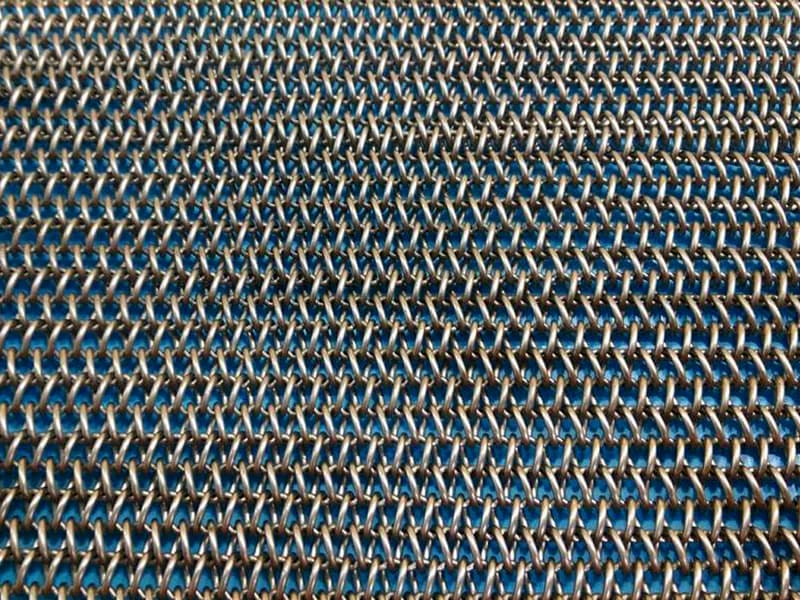

Conveyor Belt with Reinforced H-shaped Cell Coupling Construction

Conveyor Belt with Reinforced H-shaped Cell Coupling Construction


  • Wire diameter: 1.0-5.0 mm (according to customer's drawings)

Conveyor belt purpose:

  • For heat treatment furnaces used in powder metallurgy
  • For hardening and tempering furnaces

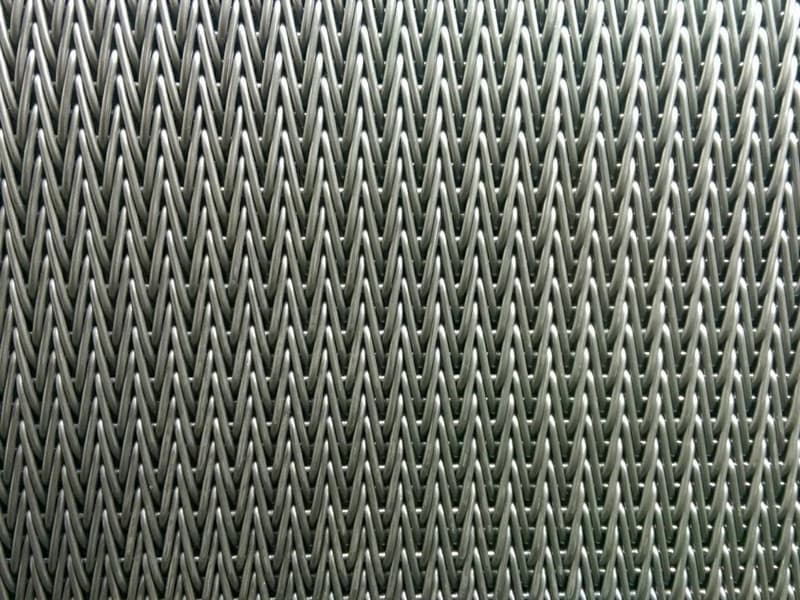

Conveyor Belt with Superimposed H-shaped Cells

Conveyor Belt with Superimposed H-shaped Cells


  • Spacing 3.6 mm - 15 mm
  • Wire type: round wire.
  • Wire diameter: 0.8-4.0 mm (according to customer’s drawings).
  • Material: stainless steel SUS304s/316/310/316/601
  • Working temperature: 400°C~1070°C
  • Belt width: 100 mm~1800 mm

Conveyor belt purpose:

  • Hardening furnaces for metalware, fasteners, hand tooling and special parts
  • Tempering furnaces for fasteners and metalware

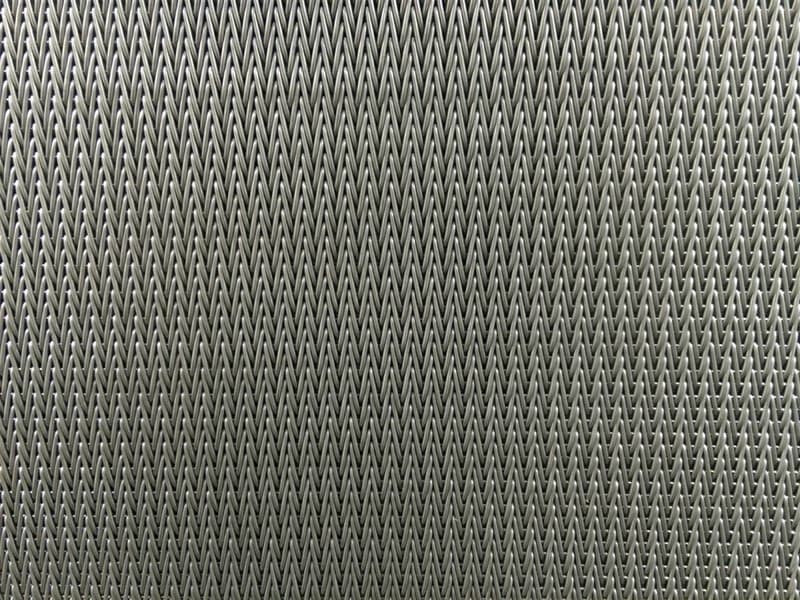

Conveyor Belt with Separate Superimposed H-shaped Cells

Conveyor Belt with Separate Superimposed H-shaped Cells


  • Spacing 3.6 mm - 15 mm
  • Wire type: round wire.
  • Wire diameter: 0.8-2.0 mm (according to customer's drawings).
  • Material: stainless steel SUS310/316/601
  • Working temperature: 700°C~1120°C
  • Belt width: 100 mm~1000 mm

Conveyor belt purpose:

  • Tempering furnaces for metalware, hand tooling and special parts

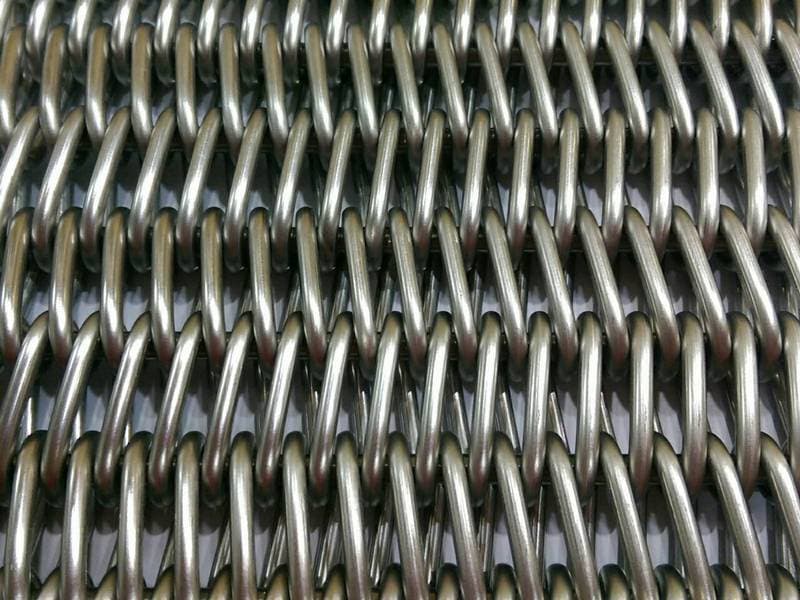

Conveyor Belt with Straight H-shaped Cells

Conveyor Belt with Straight H-shaped Cells


  • Wire type: round wire.
  • Wire diameter: 0.7-5.0 mm (according to customer's drawings).

Conveyor belt purpose:

  • Tempering furnaces for metalware, fasteners, hand tooling, and special parts

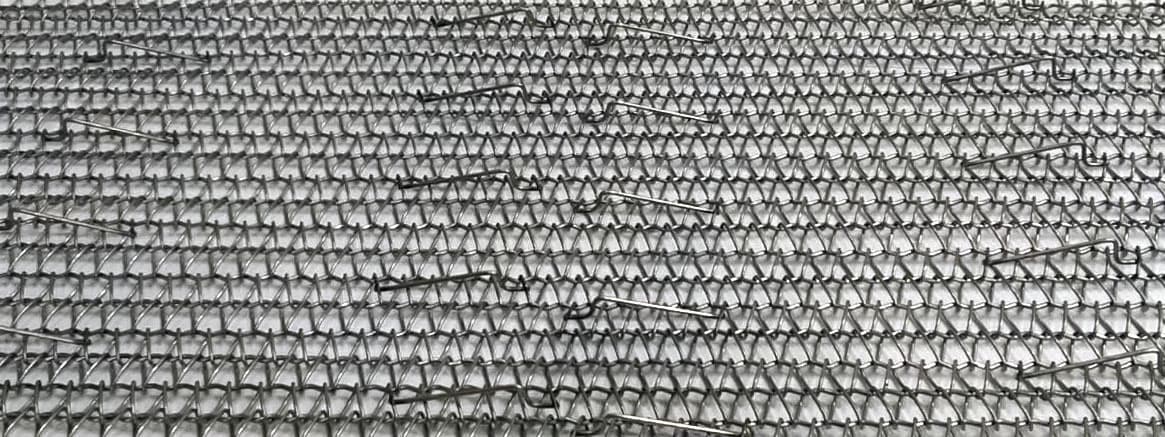

FLAT HEAT-RESISTANT CONVEYOR BELT WITH SPECIAL WEAVES FOR CONTINUOUS FURNACES

Taiwan Metiz Alliance offers heat resistant conveyor belts for continuous furnaces. Steel conveyor belts (conveyor nets) are made of steel wire or flat belts with special weaving. The main quality of the belts is a combination of flexibility and great strength properties. Taiwan Metiz Alliance also offers belts with side walls.

flat heat-resistant conveyor belt with special weaves for continuous furnaces flat heat-resistant conveyor belt with special weaves for continuous furnaces flat heat-resistant conveyor belt with special weaves for continuous furnaces flat heat-resistant conveyor belt with special weaves for continuous furnaces flat heat-resistant conveyor belt with special weaves for continuous furnaces



STAINLESS STEEL CONVEYOR BELT

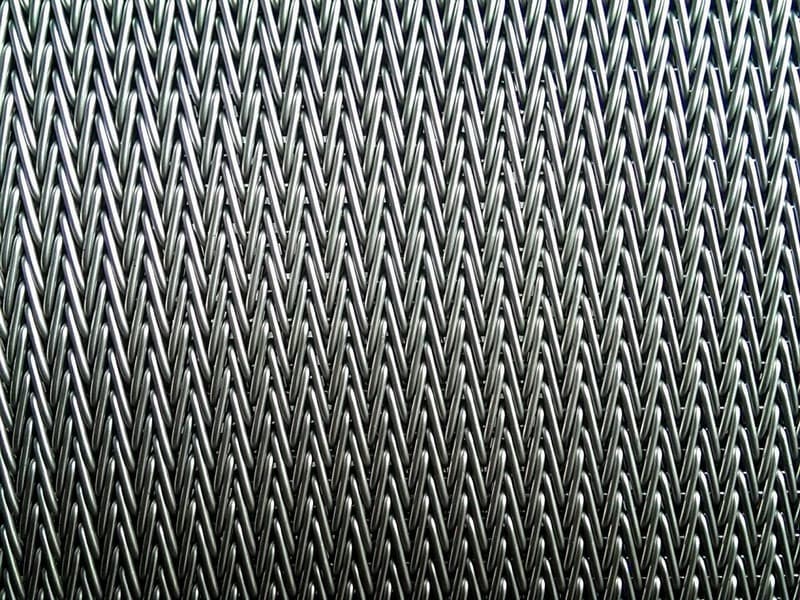

Conveyor belt with superimposed S-shaped cells
Conveyor belt with superimposed S-shaped cells

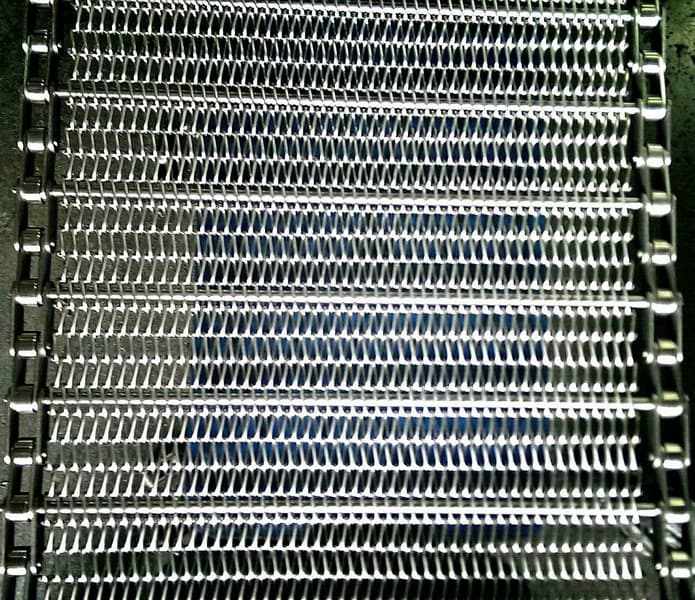

Conveyor belt with reinforced S-shaped cell coupling construction
Conveyor belt with reinforced S-shaped cell coupling construction

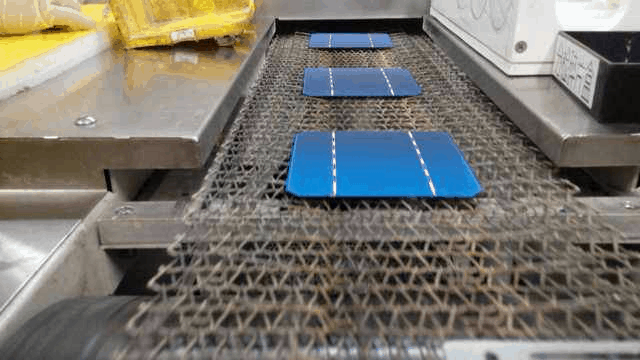

Using a conveyor belt with S-shaped cells
Using a conveyor belt with S-shaped cells



SPECIAL PURPOSE THERMOSTABLE STAINLESS STEEL CONVEYOR BELTS

Industrial application. Workshop for thermal processing of metalware products.

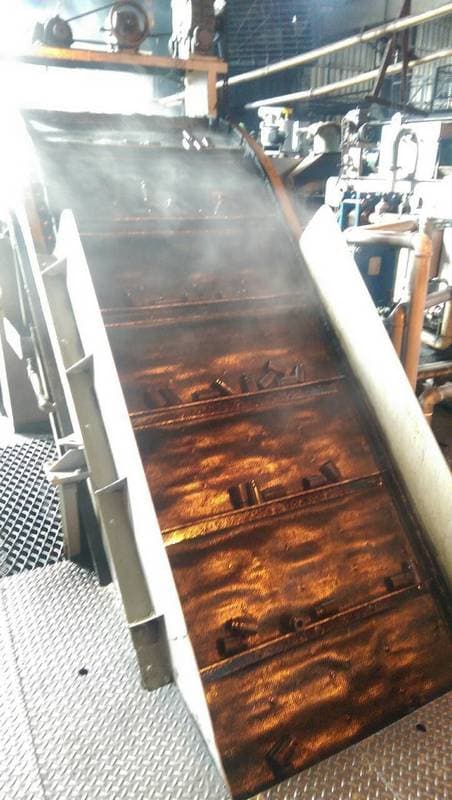

Conveyor belt for oil quenching tank
Conveyor belt for
oil quenching tank

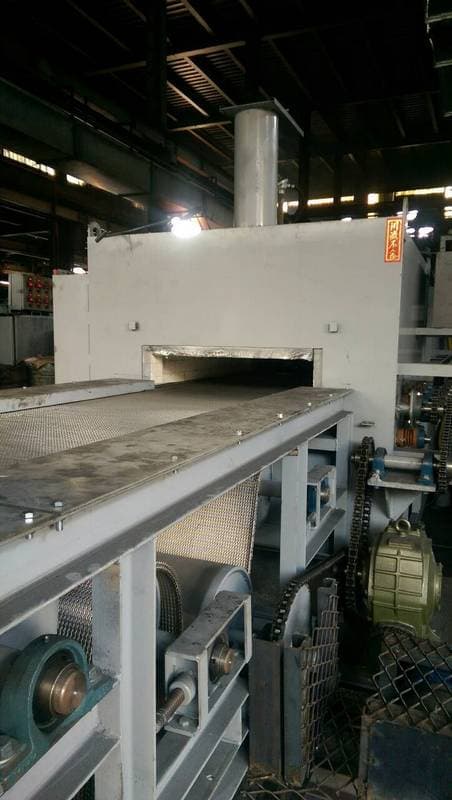

Conveyor belt for tempering furnaces for hardware, fasteners, hand tooling and special parts
Tempering furnaces for hardware,
fasteners, hand tooling and special parts

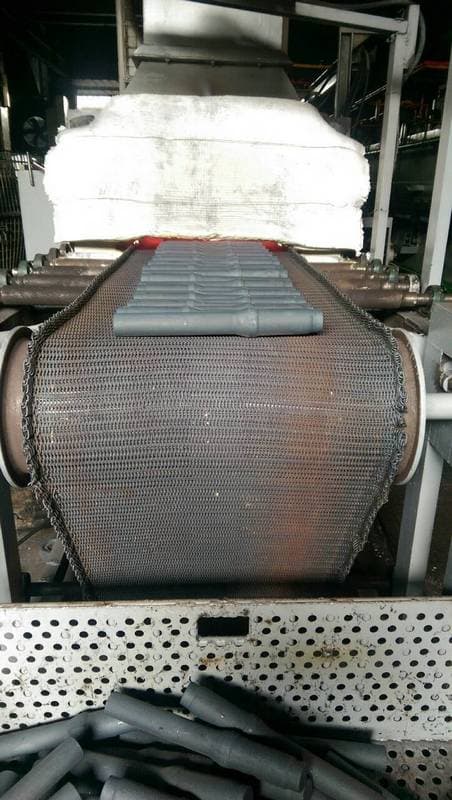

Conveyor belt for tempering furnace for metalware
Conveyor belt for tempering
furnace for metalware

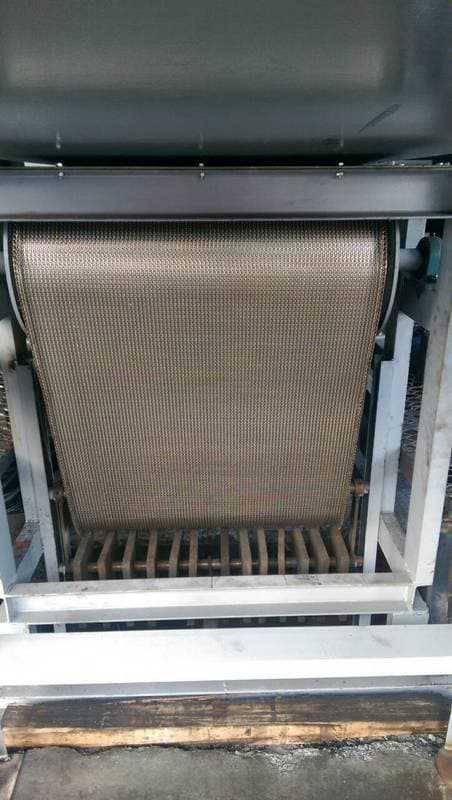

Conveyor belt in working process
Conveyor belt in
working process

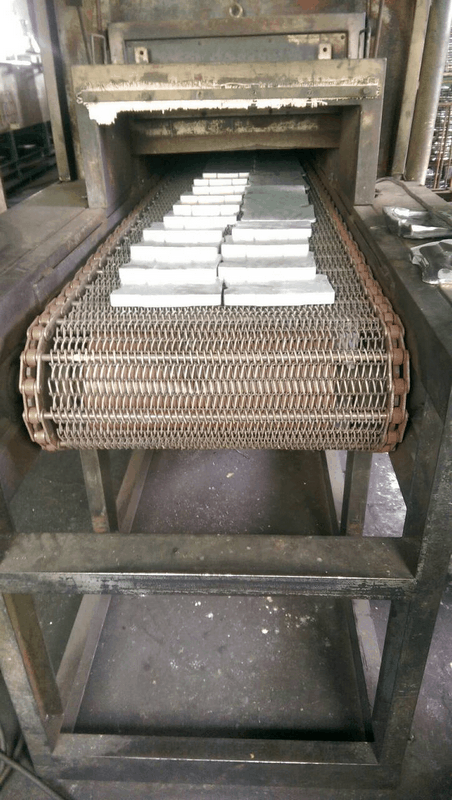

Conveyor belt for sintering and heat treatment furnaces
Conveyor belt for sintering
and heat treatment furnaces

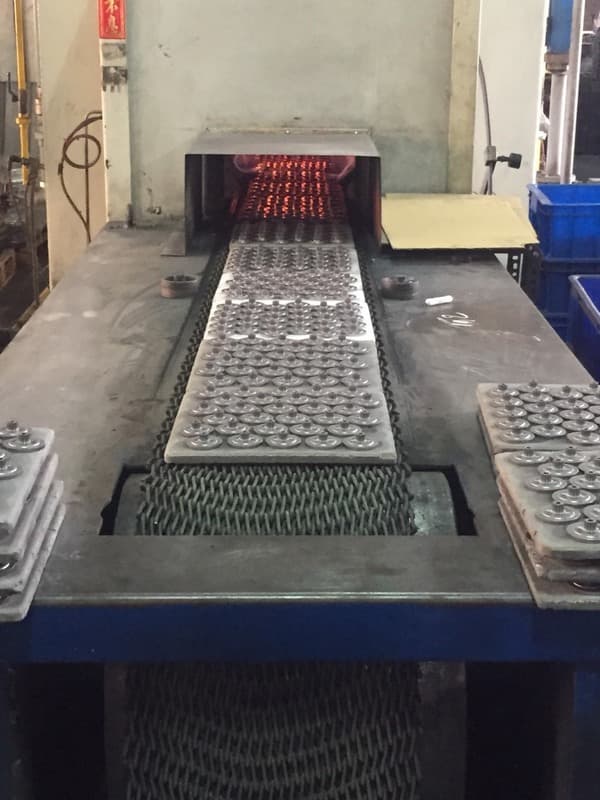

Conveyor belt for furnaces used in powder metallurgy
Conveyor belt for furnaces
used in powder metallurgy



Pictures of Conveyor Belt Packed in Wooden Boxes Ready to Deliver

Conveyor Belt Packed and  Ready to DeliverConveyor Belt Packed and  Ready to DeliverConveyor Belt Packed and  Ready to DeliverConveyor Belt Packed and  Ready to DeliverConveyor Belt Packed and  Ready to DeliverConveyor Belt Packed and  Ready to DeliverConveyor Belt Packed and  Ready to DeliverConveyor Belt Packed and  Ready to Deliver

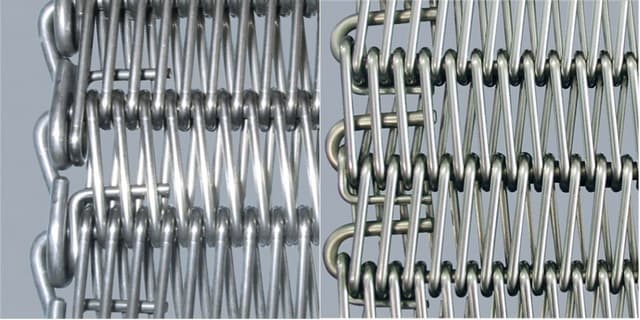

Steel mesh belt conveyor

Steel mesh belt conveyor Steel mesh belt conveyor Steel mesh belt conveyor Steel mesh belt conveyor Steel mesh belt conveyor Steel mesh belt conveyor Steel mesh belt conveyor Steel mesh belt conveyor

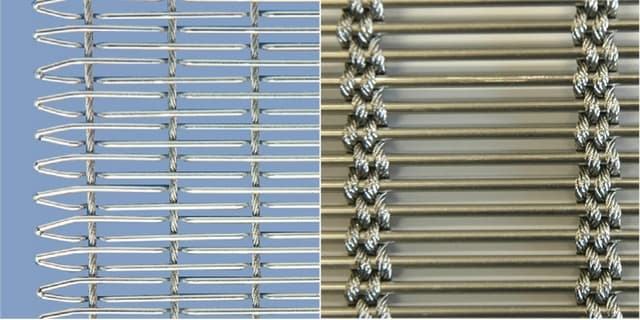

Flat Conveyor Belt with Weaving type "Ladder"

Flat Conveyor Belt with Weaving type "ladder" Flat Conveyor Belt with Weaving type "ladder" Flat Conveyor Belt with Weaving type "ladder"

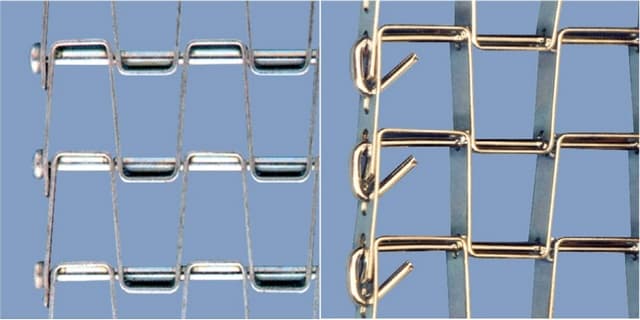

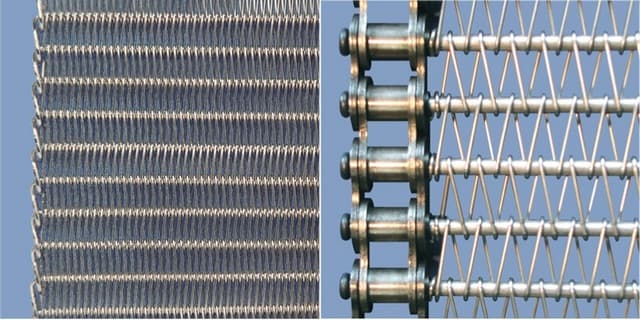

Light Duty Conveyor Mesh Belt

The mesh of the belt conveyor is made of flat steel sheets and wire with circular cross-section. It is characterized by its low weight, flat surface, and large cells. Mesh belt conveyor has a shape of a horseshoe which doesn't allow it to deviate from its given direction. It can be used as a conveyor for washing, drying, cooling and heat treatment lines.

Conveyor Mesh Belt for Easy Operation ModesConveyor Mesh Belt for Easy Operation Modes
